Products

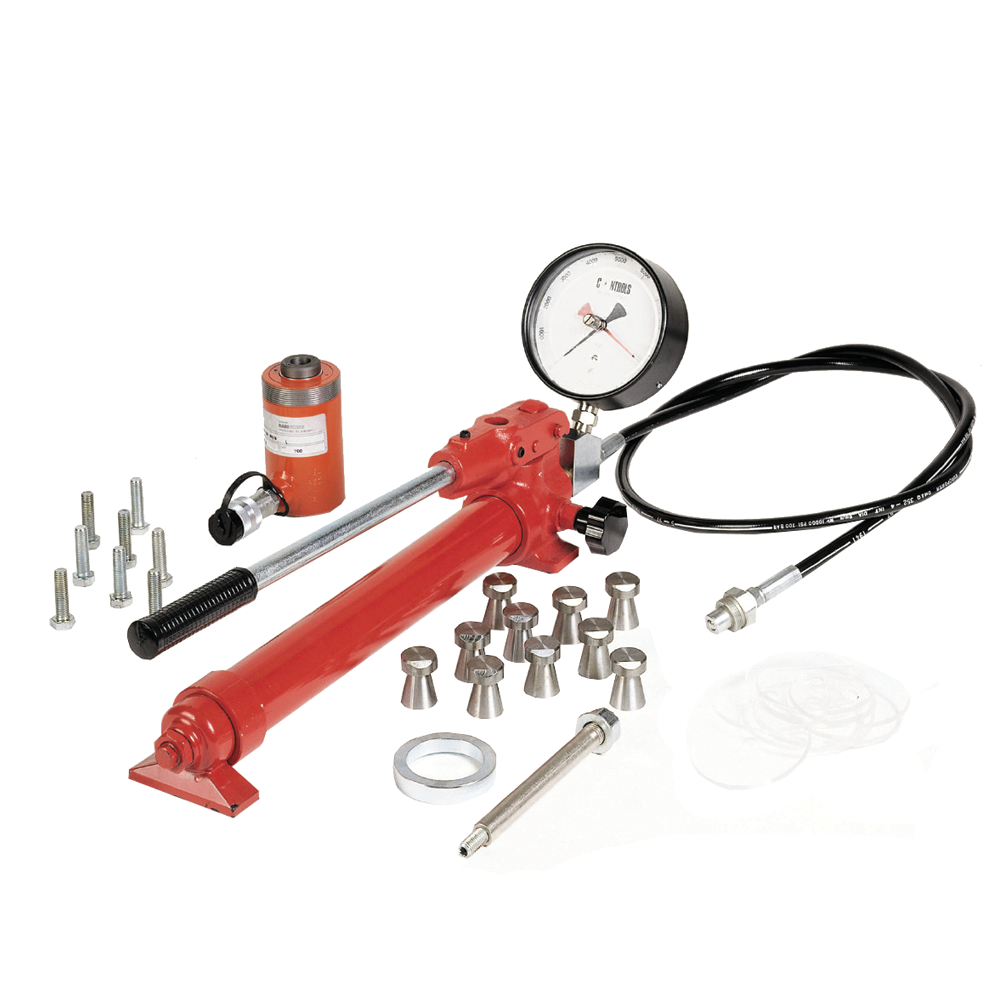

Pullout Test Apparatus

Model No : BA-0001

Standards :

---

Hydraulic Centre Hole Jack: 500kN (50 Tonnes) capacity with 54mm Centre Hole, 150 mm Ram Travel, Double Acting

Hand Operated, two stage Pump Thermoplastic Hose: 6m long with pair of quick couplings

Load Gauge: 150mm dia, 500kN x 5KN

Reaction Frame: 500kN capacity with 90mm hole at base

High Strength Test Rod: 40mm dia.

High Strength Coupling: Having RH thread to suit Test Rod on one end and LH to suit 32 mm dia. Rockbolt on the other end.

Dial Gauge: 0.01 x 25 mm

SEND INQUIRY

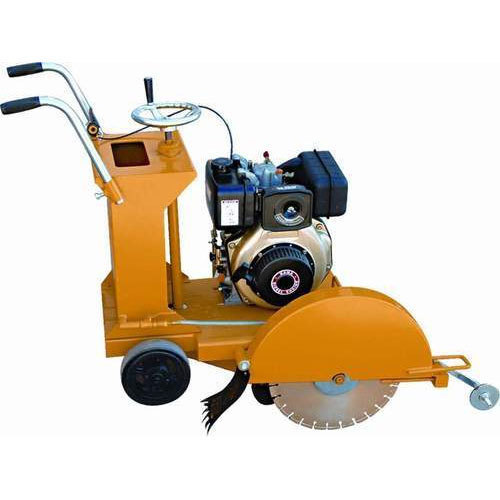

Groove Cutter Machine

Model No : BA-0002

Standards :

---

Product Description: Backed by our state-of-the-art production unit, we are offering our clients a superior quality range of Groove Cutter Machine. This machine is manufactured by our experienced professionals using quality approved components and advance techniques. The offered machine is used for cutting concrete blocks, marbles and tiles in required shapes and sizes. Available in different specifications, this Groove Cutter Machine is available with us at pocket friendly prices.

Features:

• Robust construction
• Low power consumption
• Trouble-free functionality
• Less maintenance

Concrete Groove / Asphalt Cutting Machine:

• With Electrical Panel Board
• Wire lead with plug socket
• Minimum Water: 130 RPM
• Maximum Depth: 130 RPM
• Width of Cut: 130 RPM
• Prime Motor: 130 RPM
• Diamond Blade: 130 RPM
• Motor: 130 RPM
• Weight (approx) : 390 kgs., Minimum Water : 18 Ltr/Min, Maximum Depthcut: 300 mm, Width Of Cut : 6 mm, Prime Motor : Electric Motor, Power Rating : 20 HP, Diamond Blade : 900 mm/36 inches

SEND INQUIRY

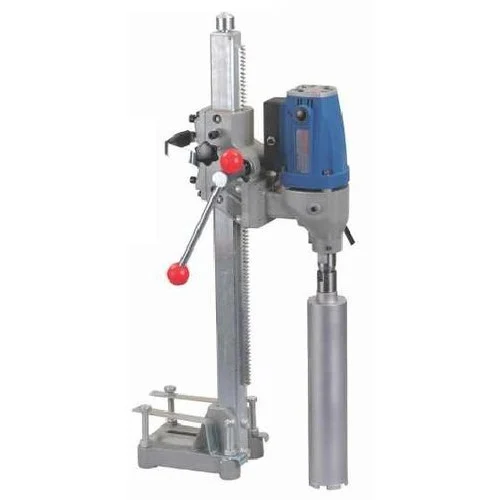

Core Cutting/Core Drilling Machine (Motorized)

Model No : BA-0003

Standards :

Specification :

• Rated Voltage: ~220 V / 50Hz
• Power Input: 2800W
• No-Load Speed: 840rpm
• Max. bit diameter: Ø50mm/100mm/150mm
• Shaft Male: 1 1/4"UNC

Features:

• Compact size with light weight as well as safety in operation
• The drills are equipped with a friction clutch as well as over load current protection for protecting motor
• High-strength gear to keep the drill working long hours constantly
• Excellent speed, smooth and stability during drilling
• Out setting water swivel seal facilitate making replacement when the seal worn out
• Bits capacity: 25mm Dia - 150mm Dia

Complete Combination:: The core drill includes drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out setting water swivel seal, hydraulic system. Optional parts include water pump, rod for ceiling jack, water container, adapters. The Core Drill is the industry standard, designed for concrete, reinforced concrete, Asphalt and brick in construction

SEND INQUIRY

Rock / Concrete Cutting Machine

Model No : BA-0004

Standards :

---

Product Description: We are engaged in providing excellent quality Stone Cutting to our customers at cost effective prices. Rendered by us in user-defined specifications, these services are used for stone cutting applications. These services are carried out by experts, to ensure high standards of quality. Other Details Can be customized Highly cost effective Systematic execution Executed by qualified professionals Applications Wall or track sawing is specified to cut precise dimensional door, vent and window opening. Openings can be cut through concrete,precast concrete, brick,cinderblock and other structural material. It is deal for creating precise opening in occupied buildings or sensitive work environment.

Compaction Factor Apparatus Product specifications: Electrically operated with cooling system. Masonry Table Saw For people who work with stone, brick, large tiles or blocks, it goes without saying that precision is crucial to the end result. But the efficiency of the machine should never compromise the need for good ergonomics and a reasonable workload. Put simply, the stone or tile you cut must fit perfectly, just as the machine and the blade you use must fit your work situation perfectly. Universal table saw with a unique super-stable height adjustment device, lockable in any position. max. cutting depth in top position is 230 mm, by turning the material over.

SEND INQUIRY

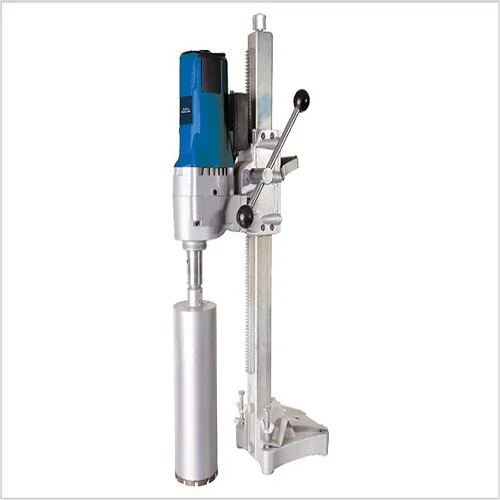

Core Cutting / Core Drilling Machine

Model No : BA-0005

Standards :

---

Specification : Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials. The machine is suitable for core samples of size upto 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable petrol engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.

• ➤ Height : 1300 mm
• ➤ Base : 625 x 900 mm
• ➤ Head travel on rack : 500mm
• ➤ Drill speeds : 900 R.P.M. for soft samples and 350
• ➤ R.P.M. for hard Samples
• ➤ Water swivel : Built in the machines.
• ➤ Accessories : (1) Thin wall diamond bits.
• ➤ Drill speeds : 900 R.P.M. for soft samples and 350

SEND INQUIRY

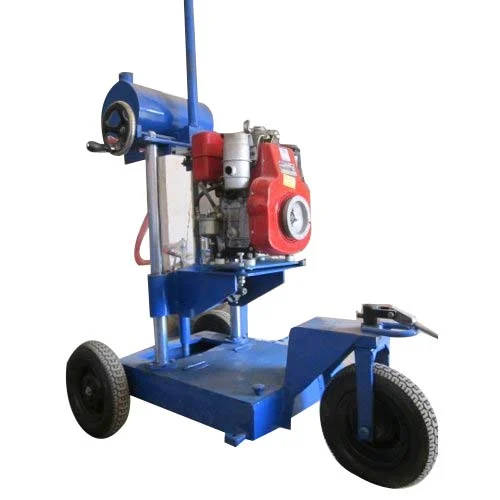

Portable Core Cutting Drilling Machine Petrol Driven

Model No : BA-0006

Standards :

---

Specification :
Compact and portable core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.

• ➤ Weight (approx) : 100 Kg
• ➤ Power : Petrol Engine 6.5 HP

SEND INQUIRY

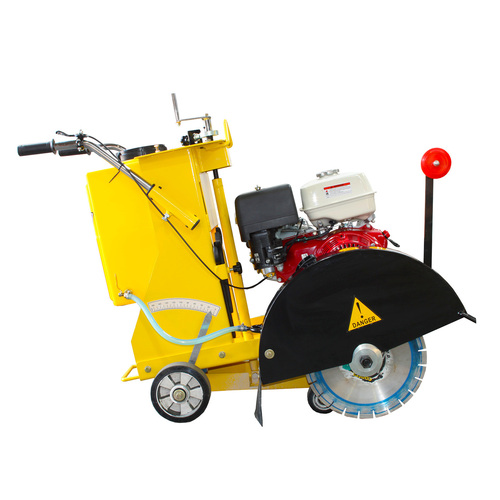

Asphalt & Concrete Floor Saw

Model No : BA-0007

Standards :

---

Specification : Driven by electrical motor or by engine as per customers requirement. Diamond blade from 350 to 500 mm maximum can be supplied as per requirement. The trolley in which the engine is fitted is supplied with cooling arrangements with the help of a water tank. Arrangements to control the depth is also provided. A safety guard is also provided on the diamond blade. Two wheels are provided for easy movability of the machine.

SEND INQUIRY

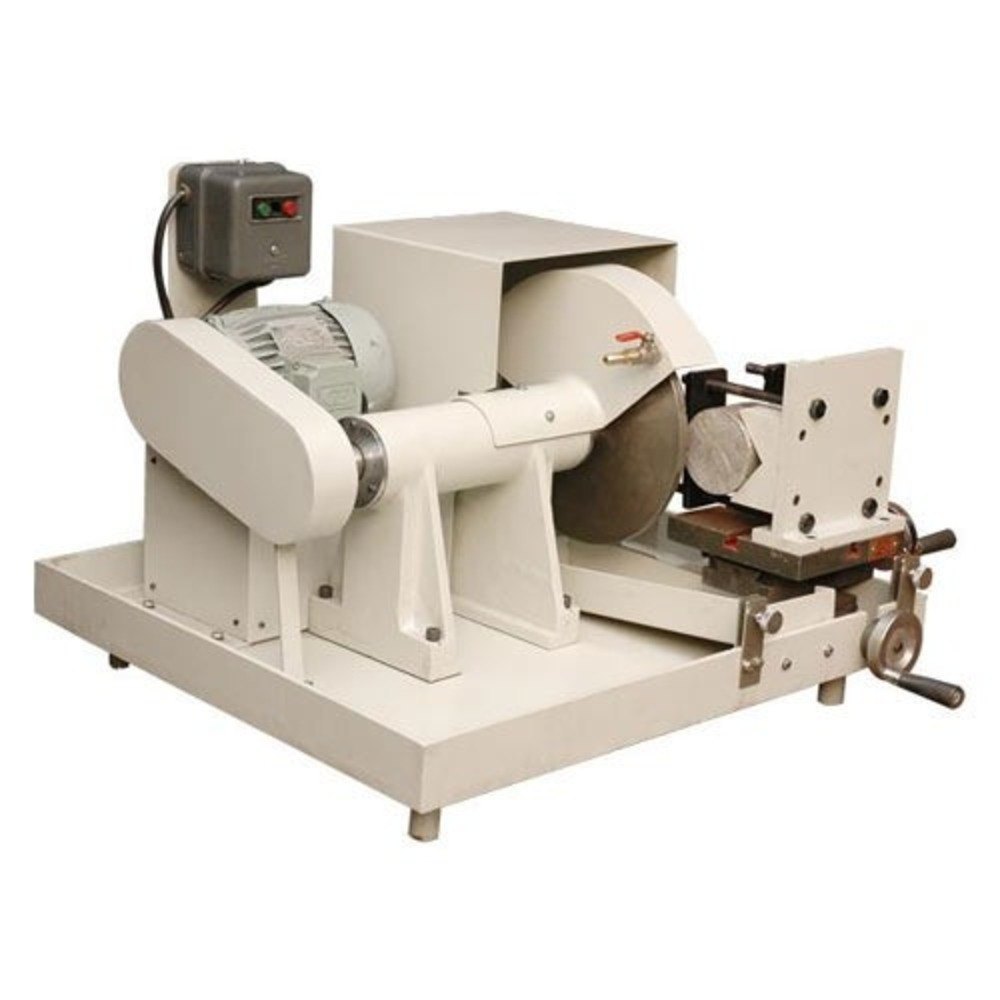

Core Cutting Grinding Machine

Model No : BA-0008

Standards :

---

Specification :

• ➤ Table Mounted
• ➤ Stable Construct
• ➤ ion Feed arrangement for cutting
• ➤ Feed arrangement for cutting
• ➤ Cooling water arrangement
• ➤ Feed arrangement for cutting

This unit is designed for cutting and grinding cylindrical rock specimens upto NX size. The outfit includes 200mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel a water supply system and sampler holder. A V-Vice, to hold the sample up to 55mm dia x 140mm long to be cut parallel and square to the longitudinal axis is provided. Cores longer that 140mm can be prepared by reversing the specimen and holding against the vice, A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motions. This unit is provided with a 3 HP, Three Phase, 440 V A.C. Motor.

SEND INQUIRY

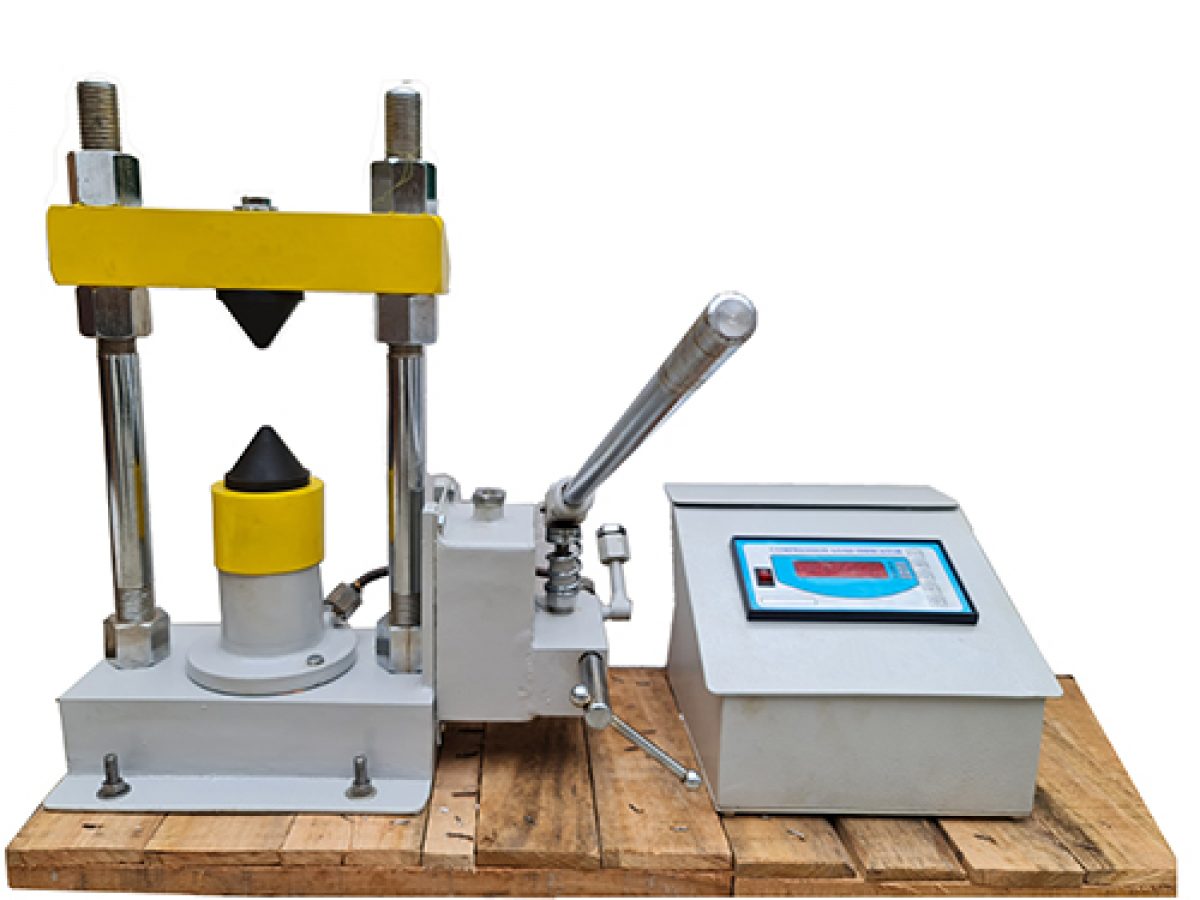

Point Load Index Tester

Model No : BA-0009

Standards :

---

Specification : Point Load Index tester, a rock testing instrument for determining the Diametrical Point Load Strength Index of rock cores and Irregular Lumps which may be tested without any treatment. The Point Load Test is primarily as index Test for strength classified of rock materials. This instrument is mainly intended for field measurements on rocks specimen, but it can be used in the laboratory. The results of the test may also be used to predict the uniaxial compressive strength of rock from correlations. The apparatus is light and portable and can be used in the laboratory as well as in the field

• ➤ Equipment is light and portable
• ➤ Rock core specimens can be tested without any preparation
• ➤ The instrument can be used in the laboratory as well as at the drilling site
• ➤ The results of the test may also be used to predict the uniaxial compressive strength of rock.
• ➤ With this instrument, a wide range of core size can be tested
• ➤ The frame has adequate adjustments to align perfectly the loading axis passing through the centre of the bearing plates and loading platens at the position of the ram of the hydraulic jack

• ➤ Loading Frame, fitted with Hydraulic Jack, hand operated, capacity 100 KN
• ➤ Load Gauge, 25KN (2,500 kgf) to read upto 0.25KN (25kgf)
• ➤ Load Gauge, 100KN (10,000 kgf) to read upto 0.50KN (50kgf)
• ➤ Conical Loading Platens.
• ➤ Diaphragm Bolt.

SEND INQUIRY

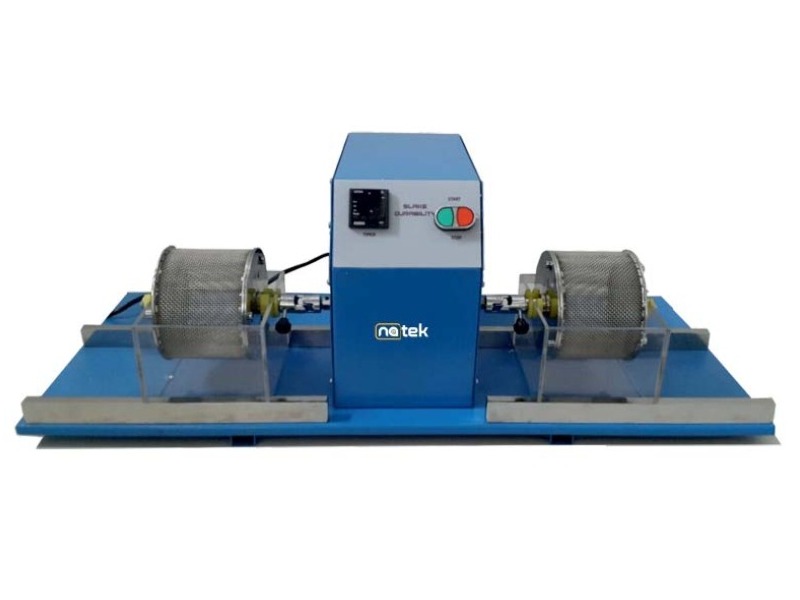

Slake Durability Apparatus

Model No : BA-0010

Standards :

---

Specification : This test method has been developed to assess the deterioration of rocks over a period of time when subjected to water immersion. Slake durability is a simulated weathering test to determine abrasion resistance during wetting and drying cycles of shale and similar soft rocks as used in embankments and other construction-related applications. Samples are alternately tumbled in mesh drums through a water medium and oven-dried for two cycles. The percent loss of mass is referred to as the slake durability index. slake durability apparatus consists of a motorized drive unit which is mounted on a baseplate and which can rotate two or four drums at a speed of 20 r.p.m. The tank assemblies are filled with water to a level 20mm below the drum axis. The test drums are manufactured from 2.00 mm mesh, 140 mm dia. X 100 mm long.

SEND INQUIRY
