Products

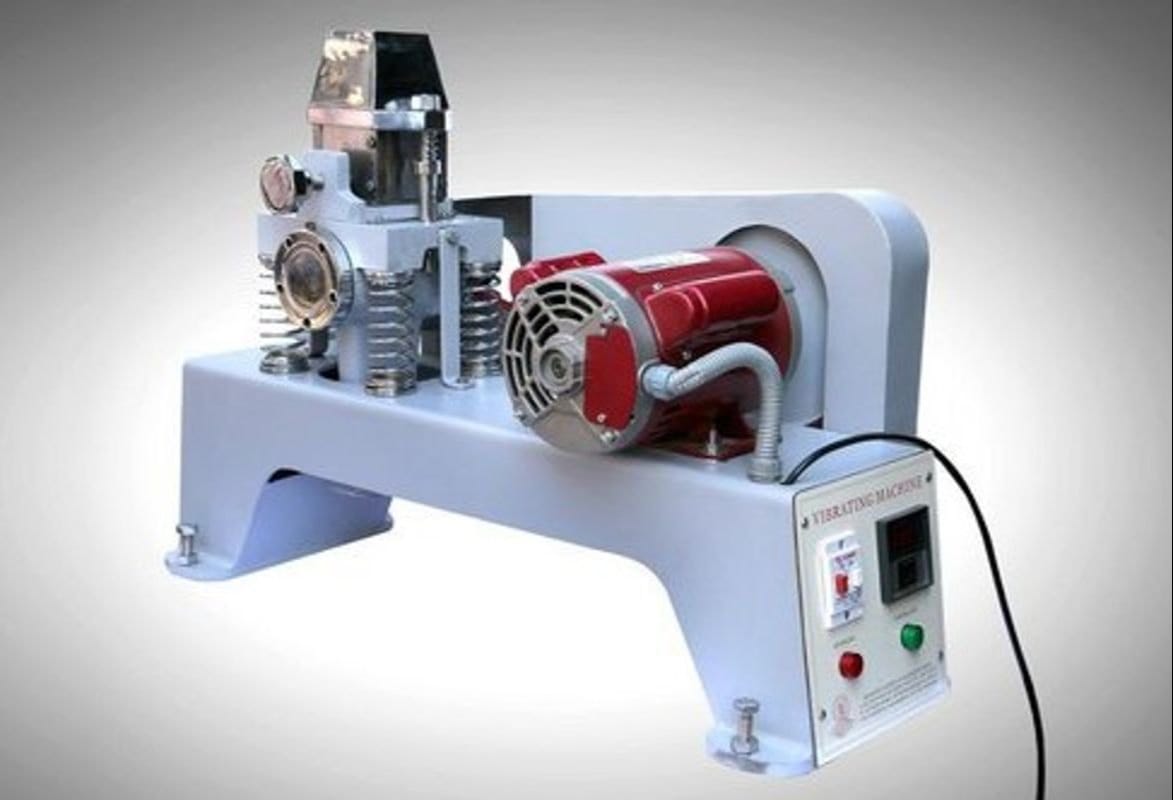

cube Moter vibrating machine

Model No : BA-011

Standards : ISO 6270-2

Product Description: The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 70.6 mm cube mould and two studs threaded at top and a hopper to feed the sample in the mould. This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame. A balance weight is an integral bottom part of the frame. The centre of gravity of the assembly is brought to the centre of the eccentric shaft within a distance of 25 mm below it. The electric motor drives the shaft of the frame and thus imparts required vibration to the moulds. The frequency of vibration is 12000 +/- 400 Vibration Per Minute. Supplied complete with on 70.6 mm Cube Mould with loose base plate, a time switch 0-5mins x 1mm. Spares: Set of springs, belt and belt guard. Optional: Digital Preset Timer can be supplied at an extra cost.

Specification :

• Cement Vibrating Machine includes a frame placed on coil springs and carries a cube mold along with a revolving shaft.
• There is a balance weight under the base plate that offers stability to the frame during operation.
• The center of gravity of the machine is kept either towards the eccentric shaft or within a range of 25 mm.
• Vibrations up to 12000 vibrations per minute

High Performance Vibrating Machine: Complete apparatus is available including the different components like mortar cube, belt cover, balance weight, springs set, base plate and a digital timer device. The complete testing apparatus is tested for accuracy and stable performance before it is moved out of the production line at our manufacturing facility.

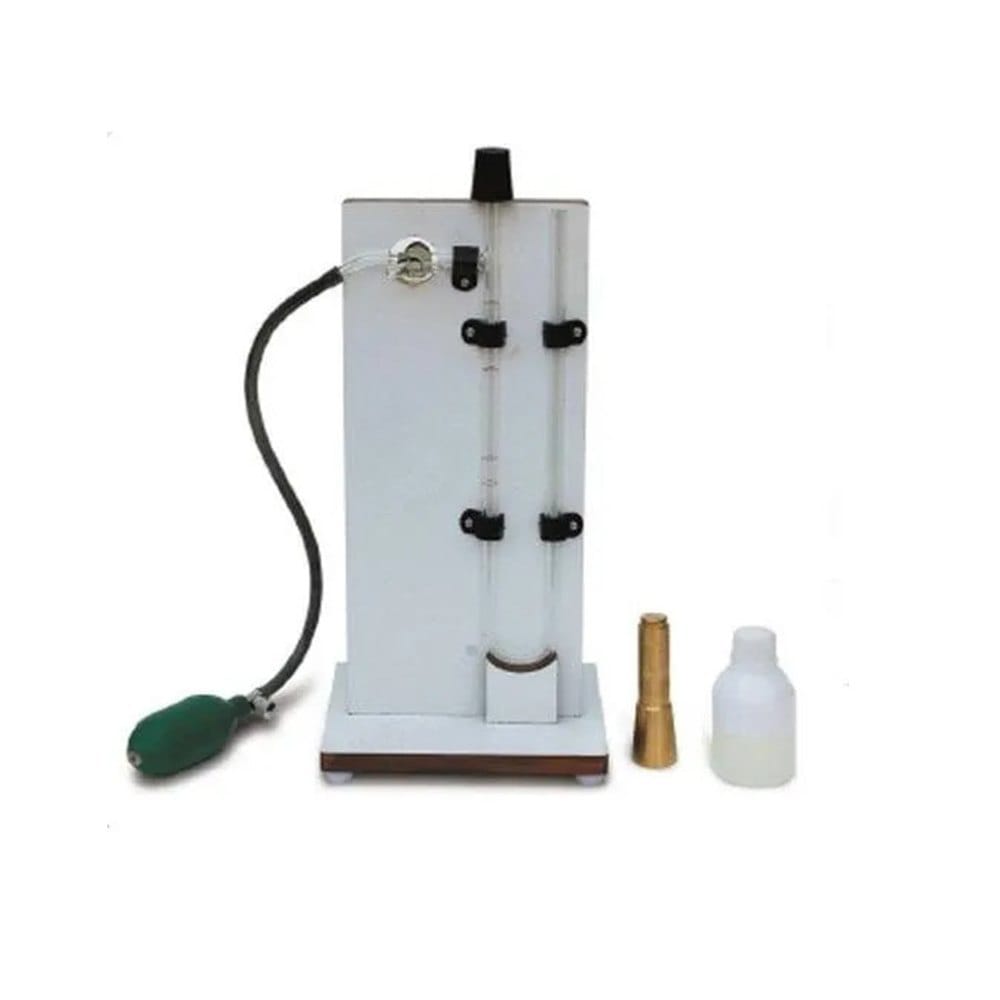

Blaine Air permeability Test

Model No : BA-012

Standards : ISO 6270-2

Specification : The "Blaine Air permeability Test" is a standard method for determining the fineness of powdered materials, such as cement, by measuring the total surface area of the particles per unit mass. "Blaine Air permeability Test 4" is likely referring to a specific question, option, or section of a standard document related to the Blaine method. The test involves drawing a controlled volume of air through a compacted bed of the material, measuring the pressure drop, and calculating the specific surface area.

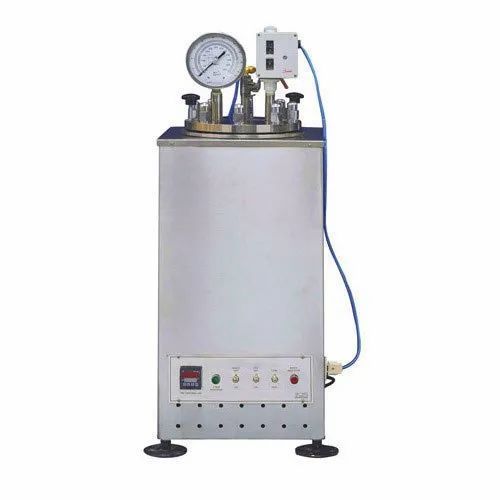

Cement Autoclave Laboratory

Model No : BA-013

Standards : ISO 6270-2

Specification : The autoclave is suitable for conducting accelerated soundness tests on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure. It consists of a stainless steel cylinder with a welded heat insulated metal housing attractively finished. The attached control unit encloses a sensitive pressure regulator and pressure gauge. Power switches and pilot lights for controlling the electric heating units. Inside chamber dimensions 10.5 cm diameter x 40.5cm height suitable for operation on 230 V, 50 Hz Single Phase A. C. supply. Supplied complete with test bar holder, special rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner. A Digital PID Controller is fitted for controlling the desired temperature.

Note: : Ordinary laboratory cement autoclave with mild steel chambers are also available

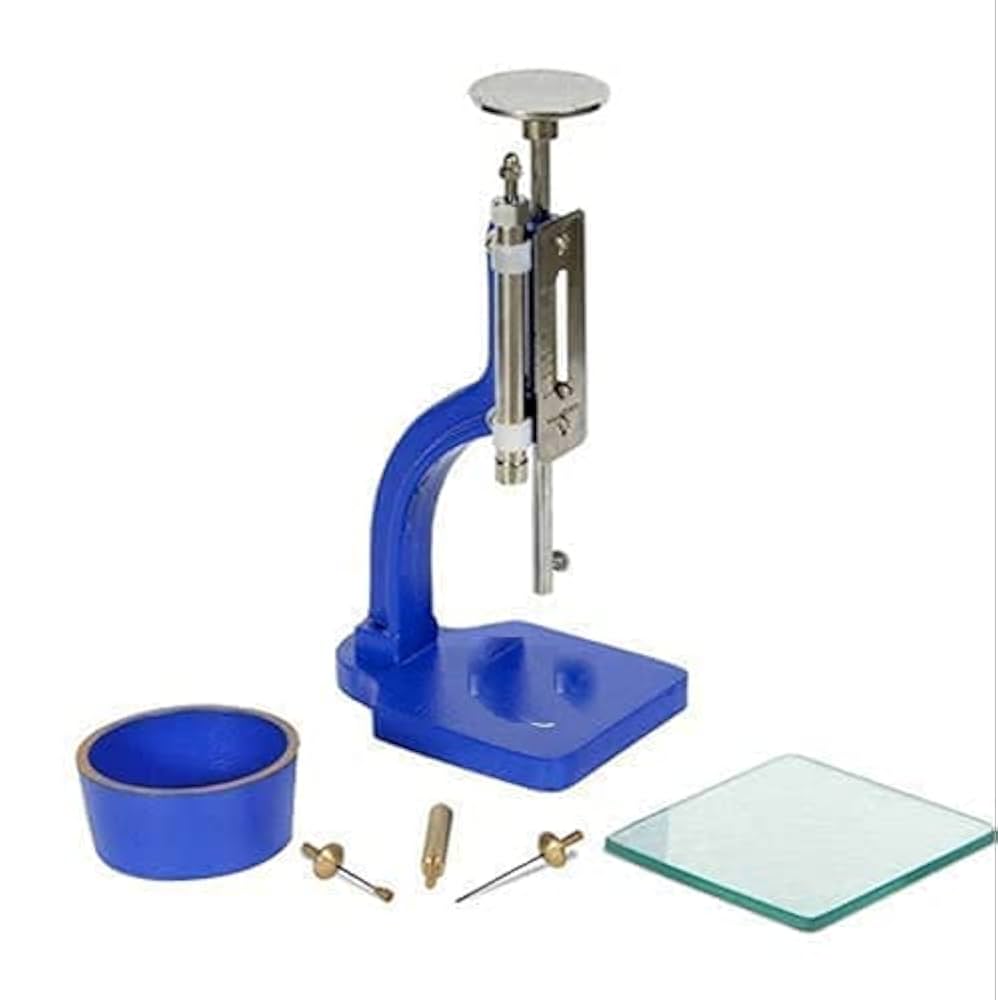

Vicat Needle Apparatus

Model No : BA-014

Standards : ISO 6270-2

Specification : The apparatus consist of metallic frame bearing a freely movable and with a cap at top, one vicat mould and glass base plate and one set of needles one each initial needls, final needle and consistency plunger. It comes with a dashpot which facilities gentle lowering of the needls

Accessories: Mild steel base plate 5 inchesX 5 inches. Fulcrum mould, brass, 80 mm i.d base dia x 70 mm i.d top dia, 40mm height

Note:

• ➤ Normally set of needls and mould which meet is requirements as per I.S 5513 are supplied. While ordering please specify the specification code of the instrument required.
• ➤Vicat needle apparatus for determining consistency of hydraulic cement. Gypsum plaster, lime etc. As per ASTM C 187-58 C 472-62 C 110-58, IS 2542 (part -1) can also be supplied.

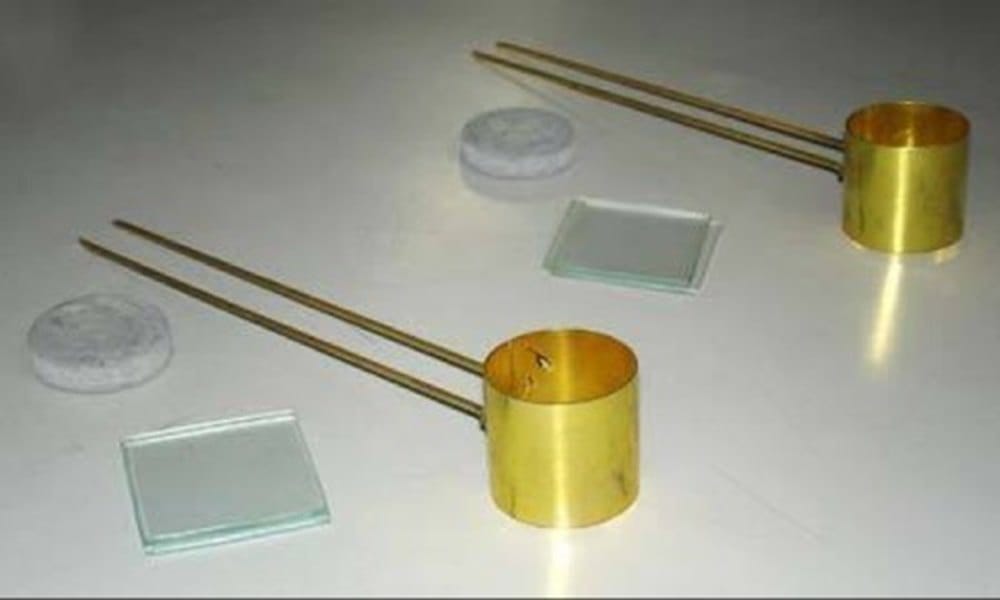

Cement Soundness Test Apparatus

Model No : BA-015

Standards : ISO 6270-2

Specification : It consists of a small split cylinder forming a mould. On either side of the split cylinder. Two parallel indicating arms with pointed ends are attached. Supplied complete with two glass plates and a lead weight.

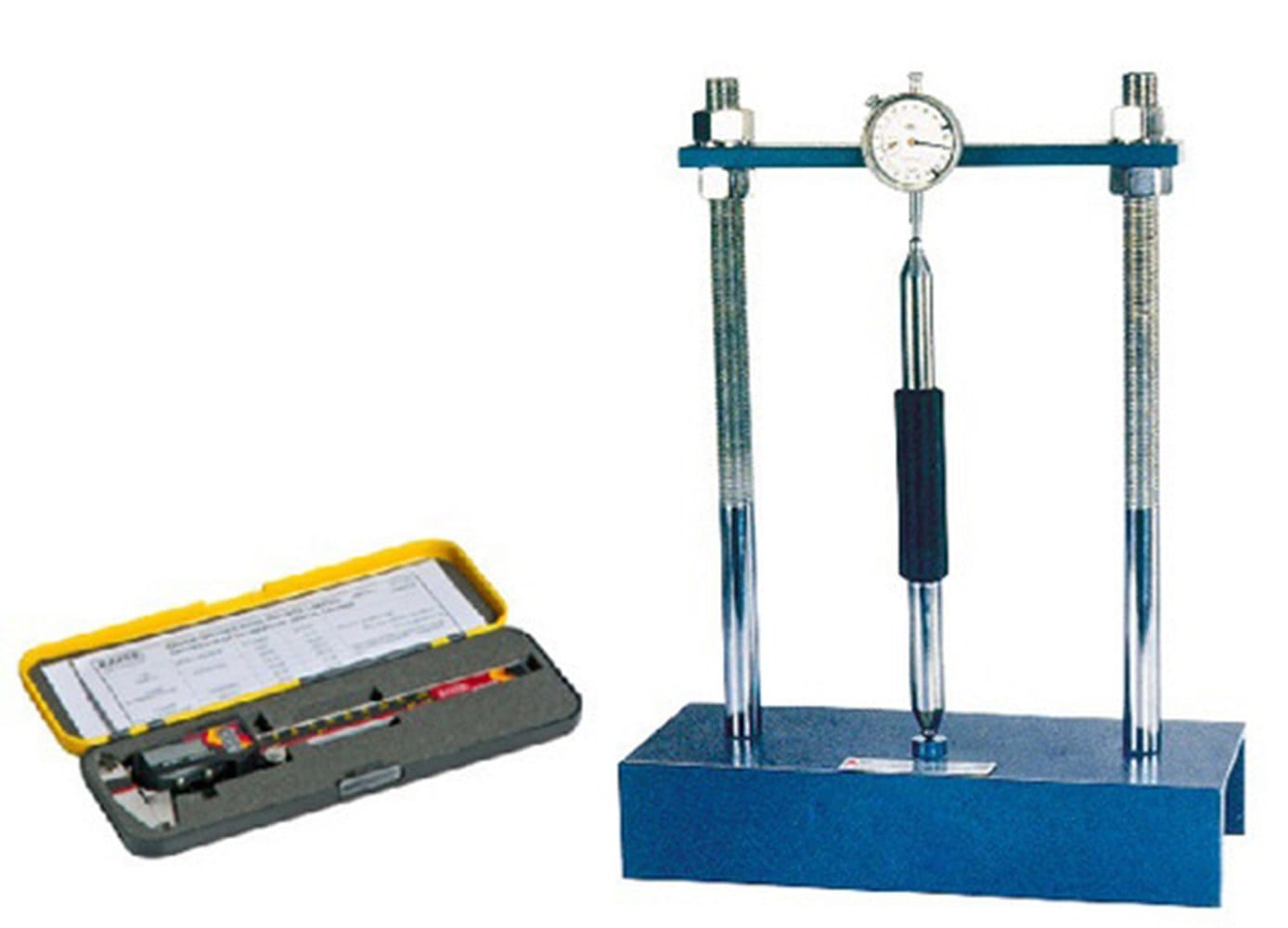

Length Comparator Apparatus

Model No : BA-016

Standards : ISO 6270-2

Specification :
The instrument consists of a channeled or a round base over which two vertical pillars are fixed. An adjustable cross plate is at the top. A dial gauge, reading to .002mm x 5mm. Can be located upon a 6.5mm. dia ball or other reference point cemented in the specimen. On the base there is similar recessed seating in which can be placed a second ball or reference point in the specimen. Complete with a stainless steel standardization bar with insulated grip and with 6.5mm dia. Balls mounted in the ends. The unit can be supplied with an Electronic Dial Gauge at extra cost if indicated at the time of placing the order.

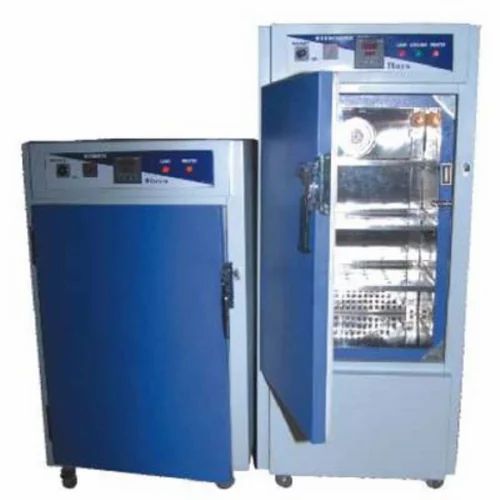

Humidity Chamber for Cement Testing

Model No : BA-017

Standards : ISO 6270-2

Construction:: Double walled outer M.S. Sheet duly powder coated. Inner Aluminium/ Stainless Steel with 2nos. adjustable shelves duly perforated. Having heavy duty M.S. Stand. The door is an impressive structure having glass window & sealed by Rubber Gasket. Gap between the walls is filled with glass.

Control Panel:
Consist of Temp. controller i.e. Thermostat for dry temp. Control, Wet Temp. controller Energy Regulator, Mains, Dry, Wet Indicator Humidity Indicator, Mains, Illumination Switch. Humidity controlled by Imported Humidistate placed inside the chamber. Supplied with Hygrometer/ wet and dry thermometer to check exact Humidity inside the chamber.The Temperature is recorded on the "L" shaped prismatic Thermometer fitted at the front of the cabinet. The water tank is provided at the bottom & the steam is circulated by water pump/motor fitted at the top of the chamber.

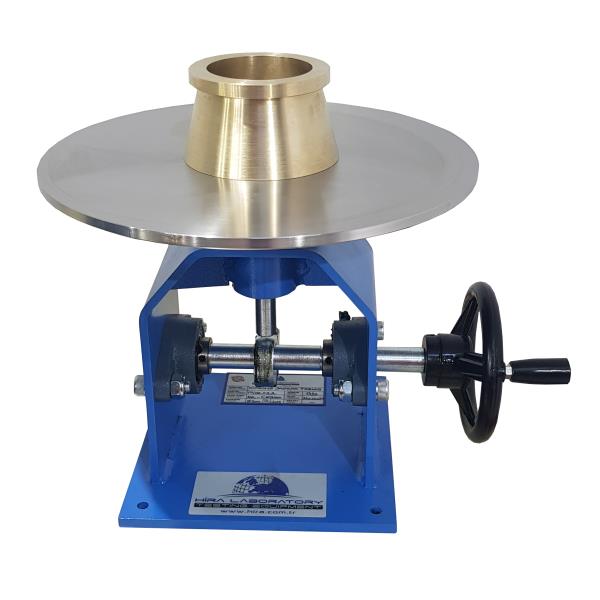

Flow Table of Cement test

Model No : BA-018

Standards : ISO 6270-2

Specification : The flow table consists of a 30 cm dia polish steel plate with 3 engraved annular circles 7, 11 and 19cm dia. The table top is arranged for a free fall of 12.5mm by a cam action. Supplied complete with one brass conical mould, 65mm i.d. at base and 40mm i.d. at top, height of the mould 90mm.

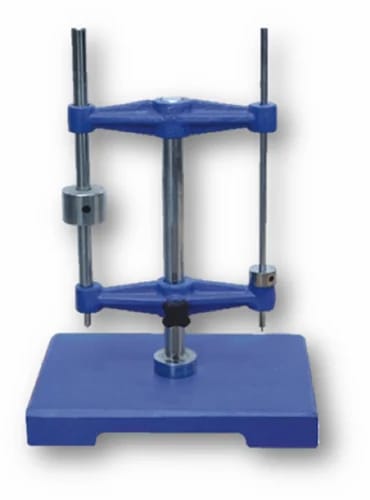

Gillmore Needle Apparatus

Model No : BA-019

Standards : ISO 6270-2

Specification : A base with a Vertical shaft and Two horizontal arms. The lower arms is adjustable for height. 1 no. Initial needle 1/12-inch dia. ¼ lb. Wt. 1 no. Final needle 1/24 inch dia. ¼ lb. Wt. 1 no. Glass base plate. Complete as above.

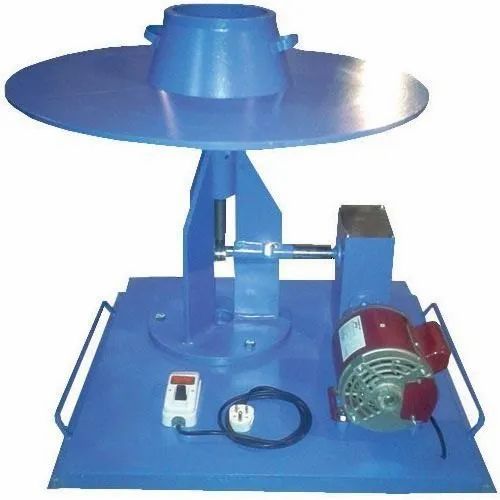

Flow Table for Cement Mortar, Motorized

Model No : BA-020

Standards : ISO 6270-2

Product Description: Consists of a steel table top 76.2cm ( 30 inch. Dia.) Finely machined. The integral cast ribs are designed for support and strength. The stand is fabricated out of cast iron and is of study construction. Holes for mounting in foundations are drilled in the base plate. The ground and hardened steel cam is designed to fit and drop the table by 12.5mm. Electrically operated to raise and drop the table top, approx. 15 times in 15 seconds, Suitable for operation on 230 Volts, 50 cycles, A.C. supply. Supplied with one conical mould with two handles, 12cm height, having 17cm. Inside Dia. at the Top and 25cm inner dia. at the base. Complete with a tamping rod 16mm dia x 600mm long one end rounded.

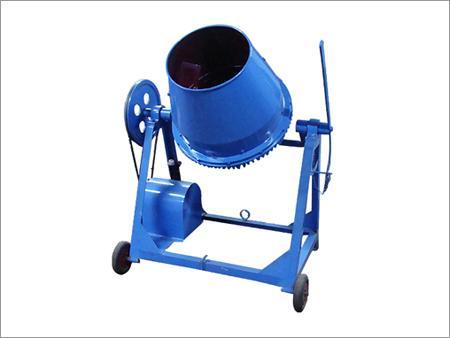

Laboratory Concrete Mixer (Motorized)

Model No : BA-021

Standards : ISO 6270-2

Specification : The Laboratory Concrete Mixer is used for preparing Mix Design of Concrete. It consists of a steel vessel of 55/ 110 Litres capacity, mounted on a frame. The vessel is rotated at 20-22 RPM with the help of a motor and a pulley arrangement. The vessel of laboratory concrete mixer can be titled to any angle by a hand wheel and counter weight. This facilitates mixing and discharge. Blades are provided inside the vessel to mix the material thoroughly. The large pulley wheel facilitates manual rotation of the drum during power failure. The drum, pulley wheel, and motor are mounted on a steel frame in these laboratory concrete mixer. The concrete mixer is fitted with ½ HP motor. Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply.

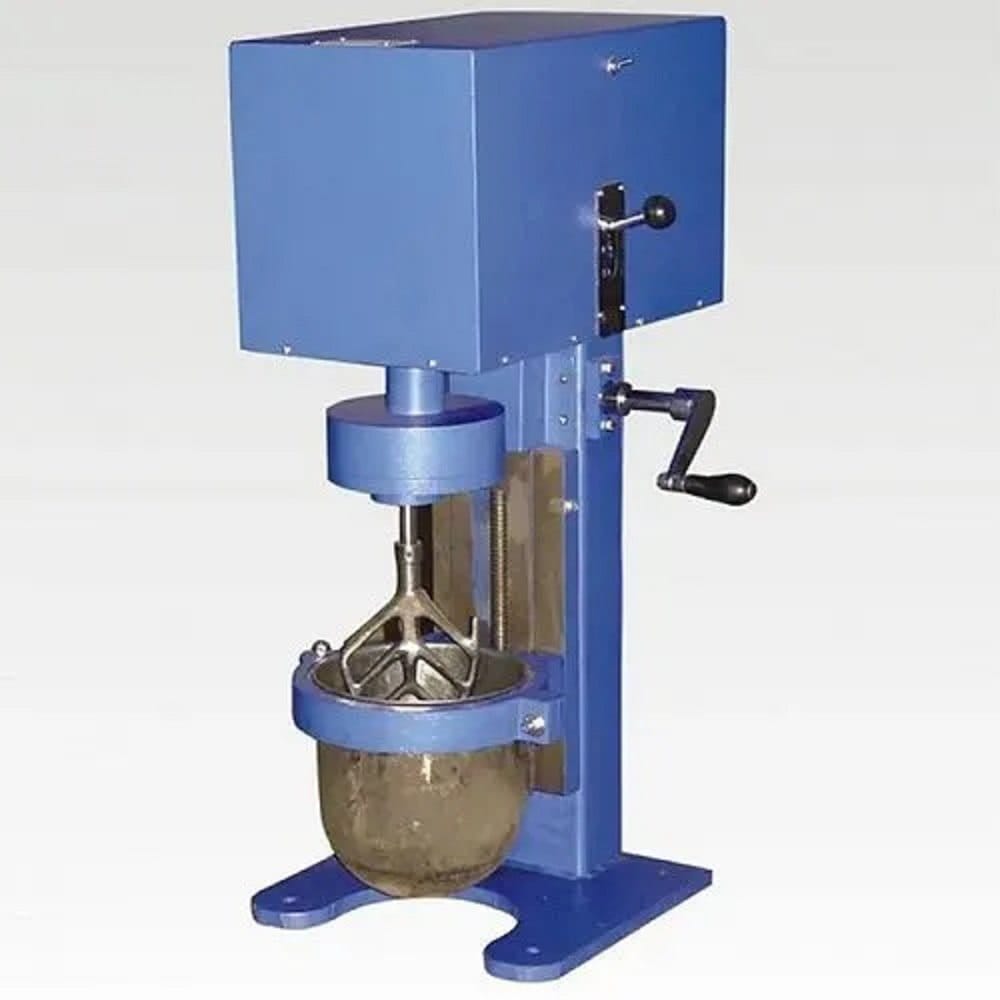

Electric Planetary Mixer Mortar Mixer

Model No : BA-022

Standards : ISO 6270-2

Specification : This very robust mixer is expressly designed for the efficient mixing of cement pastes and mortar, with four automatic sequences of mixing cycle, in compliance with: EN 196-1, EN 196-3:2005, EN 480-1 Specifications. Bowl capacity is 4.7 litres

Two speeds can be selected:

• ➤ 140 or 285 rpm for the revolving action.
• ➤62 or 125 rpm for the planetary action.

By operating automatically on changes of speed, stops and mixing sequences, outlined by acoustic signal, the unit performs the mixing cycle. The unit is equipped with an automatic sand dispenser which fills the sand into the mixing bowl for a period of 30 seconds (EN 196-1 program). Complete with safety door conforming to CE Safety Directive; if opened it automatically stops the machine. Supplied complete with stainless steel bowl, but without beater which has to be ordered separately (see mod. E095-03 or E095-05).

• ➤ Power supply: 230 V 1ph 50 Hz.
• ➤Dimensions: 340x460x700 mm.
• ➤eight: 45 Kg approx..

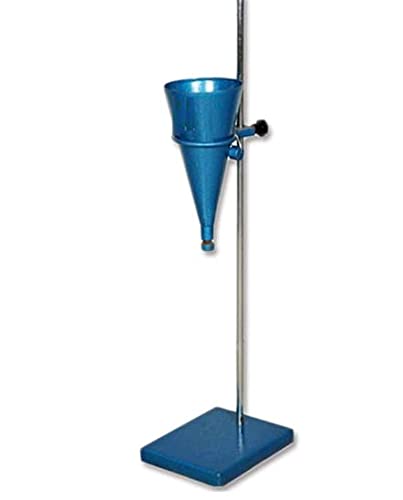

Marsh Funnel with Measuring Jar

Model No : BA-023

Standards : ISO 6270-2

Product Description: Marsh funnel is a simple yet important apparatus to measure the viscosity of the slurry and other types of cement mixes. Viscosity is a determinant of the flow speed and thickness of the slurry and therefore also its strength characteristics. The dimensional make of marsh funnel and measuring cup is precisely maintained as per the demands of mud engineers who use it to measure the viscosity of fluidized mixes of different types.

Specification :

Note : Accelerated curing tank with cooling arrangement is also available of request

• ➤A metallic funnel which is 12 inches in length and 6 inches wide at the top
• ➤ It is mounted on a vertical stand
• ➤ The cone tapers down and connects at the lower end with a drain tube that is made with high grade polymer plastic
• ➤ The tube is 2 inches long and has 3/16 inches diameter
• ➤ The total capacity of the closed cone is 1500 cc

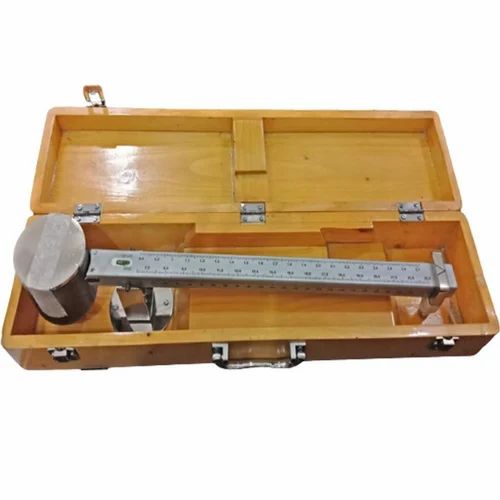

Mud Balance

Model No : BA-024

Standards : ISO 6270-2

Product Description: It provides a simple method for the accurate determination of mud density. The balance consists of a base and graduated arm with cup, lid, knife edge, rider, built-in spirit level and counter-weight, carrying case. The constant volume cup is affixed to one end of the graduate arm and the counter-weight on the opposite end. The apparatus has –

• ➤ A stainless steel beam at one end of which there is a steel cup with a lid on it
• ➤ An overflow vent is attached with the cup
• ➤ The beam rests on a fulcrum while another counter weight is attached
• ➤ A cursor to slide on the calibrated beam

Specification : Reading of the specific gravity of the semi liquid is thus derived instantaneously. Simple to use, this apparatus offers on the spot measurement of density and this in turn helps the engineers to make the relative comparisons for the purpose of project execution.

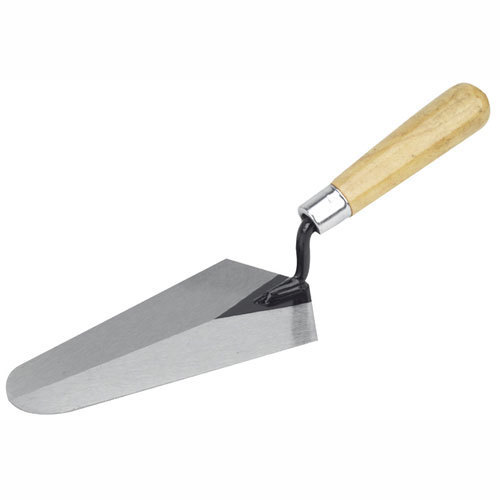

Gauging Trowel

Model No : BA-025

Standards : ISO 6270-2

Specification : Weight approximately 210 gms.. Best quality with hard wood handle blade length 200mm.

Standard Spatula

Model No : BA-026

Standards : ISO 6270-2

Specification : The apparatus is used to determine the workability of Portland cement & concrete. The Kelly ball test is considered to be simple and much faster than the slump test. Twice the Kelly ball reading approximately equals the slump. It consists of a cylinder with a ball shaped bottom and handle, together weighing 15 kg. A strip frame, guides the handle and serves as a reference for measuring the depth of penetration. The handle is graduated in mm. Penetration can be recorded to the nearest 0.5 mm.

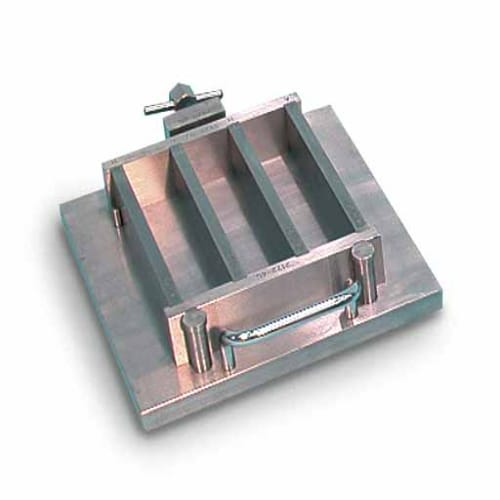

Prism Mould Three Gang

Model No : BA-027

Standards : ISO 6270-2

Product Description: It is supplied complete with base. All parts are marked with the identification number for correct assembly. Each mould is individually verified in the dimensional tolerances, hardness, squareness, flatness & roughness. Size: 40.1 X 40 X 160 mm

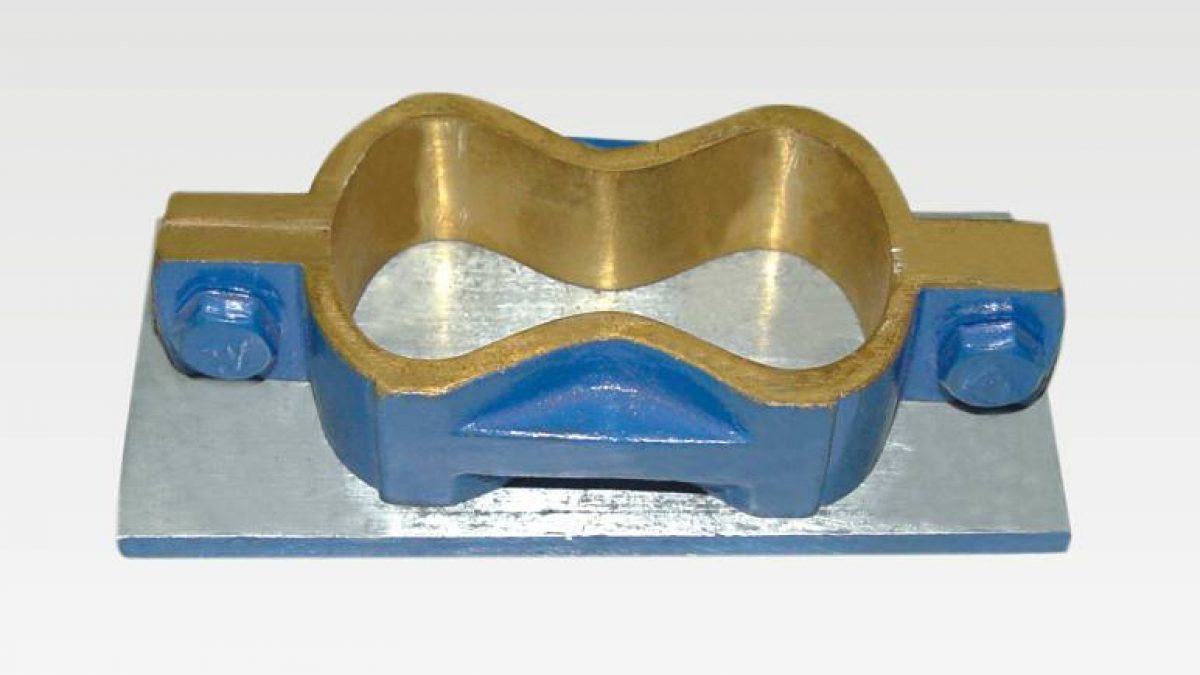

Briquettes Mould Single

Model No : BA-028

Standards : ISO 6270-2

Specification : For casting of cement briquettes for tensile strength tests. It is a two part split mould made of gun metal. Two thumb screws facilitate easy and quick assembling and dismantling of the mould. The minimum cross section of the briquettes cast is 25.4 mm x 25.4 mm. Supplied complete with a steel base plate.

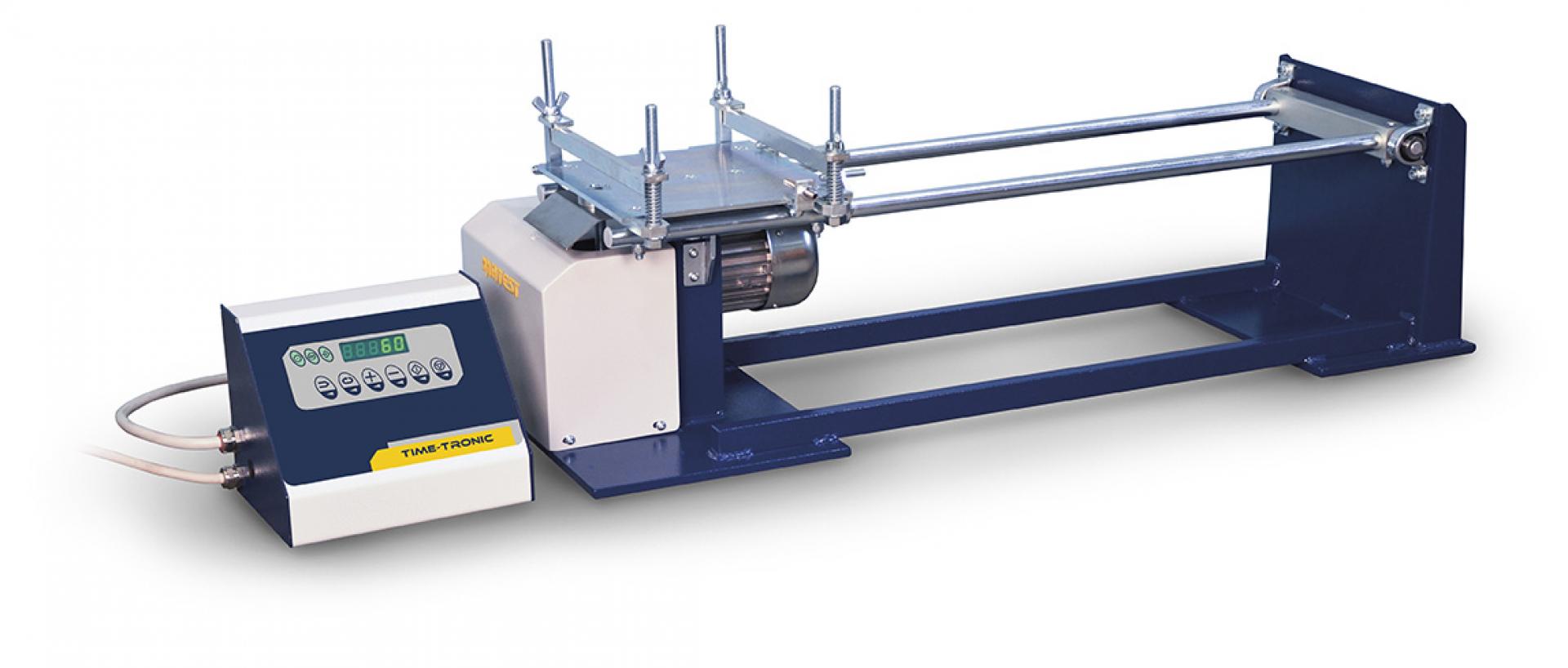

Jolting apparatus

Model No : BA-029

Standards : ISO 6270-2

Specification : The jolting apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table. There is a projecting lug with a plane face on the upper face of the table beneath which is a stop with a rounded upper surface. The table can be raised and allowed to fall freely on the stop by a cam which is connected to a motor and gearbox through a V-belt an pulleys. The cam rotates at a rate of 60 Rev/Min. A stroke counter fitted with micro-switch is provided which stops the machine after 60 Jolts. Locating pins are provided for mounting the mould compartments on the table. The mould surmounted by the hopper can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation on 230 Volts, Single Phase, A.C. Supply. A Digital Preset Counter can be supplied at an extra cost.

Spares and Accessories:

• ➤Steel mould with base plate having three compartments each having 40 x 40 x 160 mm, internal dimensions.
• ➤ Apparatus for de-moulding the specimen.

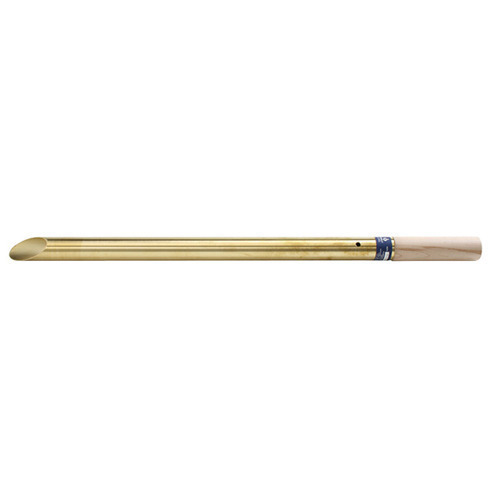

Cement Sampler

Model No : BA-030

Standards : ISO 6270-2

Specification : This is a brass tube approximately 53cm long and 2.8cm I.D. with a wooden handle. Total length approximately 73cm. The tube has the sharp angular edge which conveniently pierces cement bags. An air hole of approximately 3mm dia. is drilled on the tube near handle. Total sample collected at one time is 300 cm approximately.

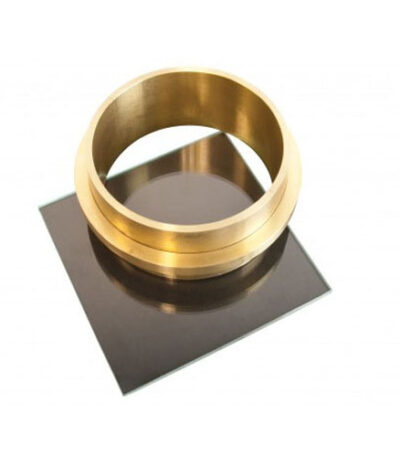

Ring Mould for Cement Testing

Model No : BA-031

Standards : ISO 6270-2

Specification : Consists of mould 100 mm x 5mm. Deep and a glass base plates. Used to determine soundness of hydrated lime

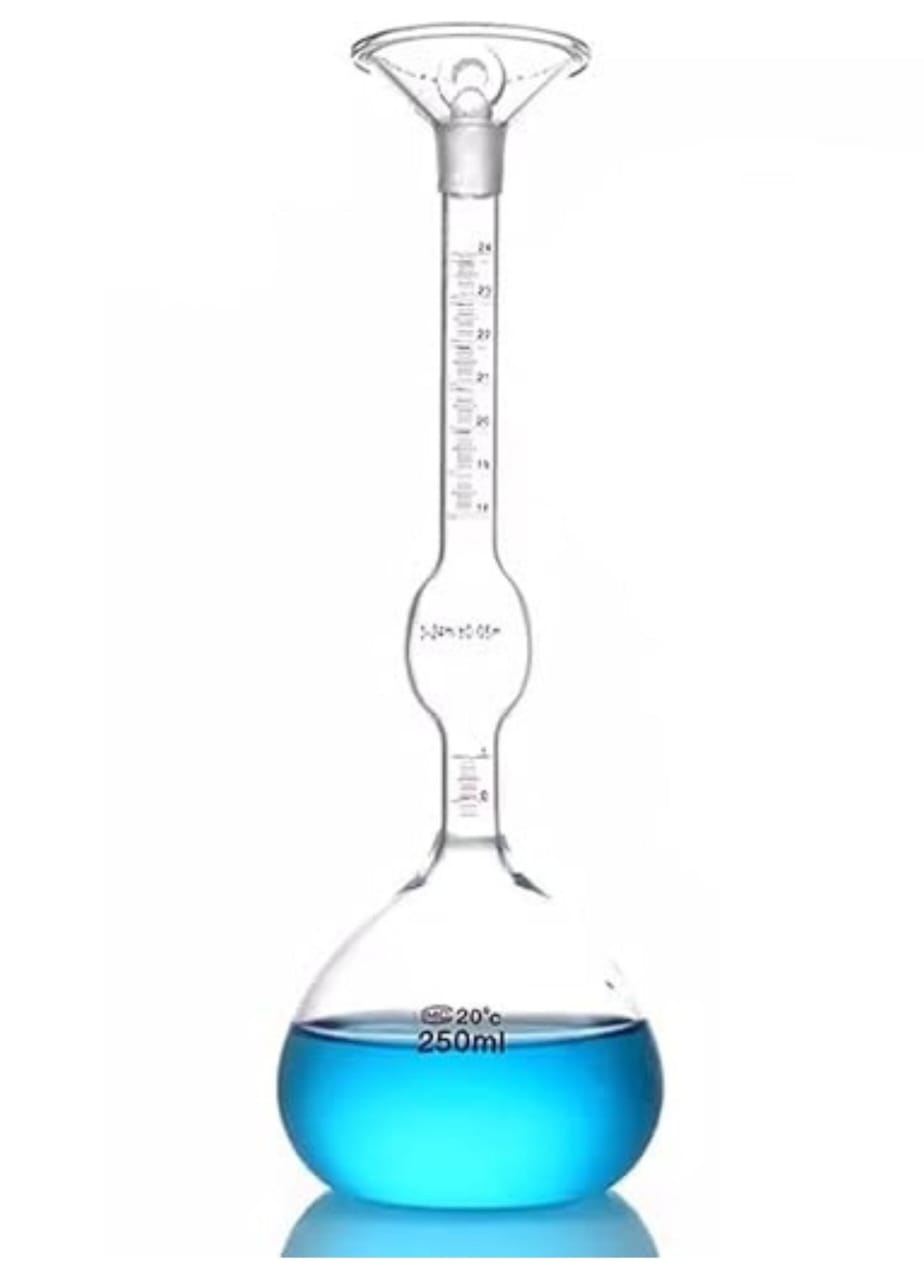

Le Chatelier Flask

Model No : BA-032

Standards : ISO 6270-2

Specification : Used for finding specific gravity of hydraulic cement. Made from Borosilicate glass. The flask is 243mm in total height, having a bulb of 90mm dia. of 250ml approximate capacity. The long neck of the flask has at top a funnel of 50mm dia. in that fits a ground glass stopper. The neck has over-all 11mm i.d. upper portion is graduated from 18ml to 24ml with 1 ml graduation. Just at the bottom of the neck 1 ml capacity is marked in between there is 17 ml capacity bulb.

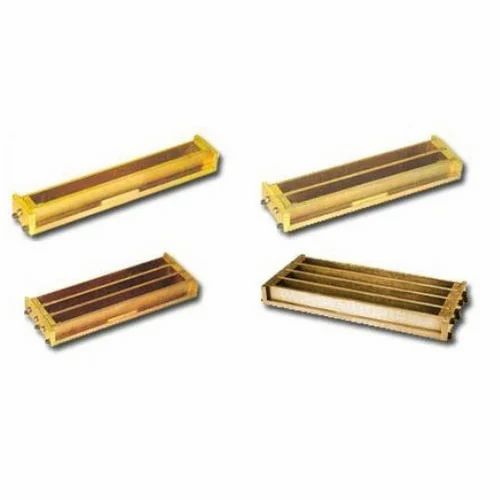

Shrinkage Bar Mould

Model No : BA-033

Standards : ISO 6270-2

Specification : Available Models:

• ➤Bhalaji Associates-1012-A: Shrinkage Bar Mould - One Gang (One Compartment)
• ➤ Bhalaji Associates-1012-B: Shrinkage Bar Mould - Two Gang (Two Compartment)
• ➤ Bhalaji Associates-1012-C: Shrinkage Bar Mould - Three Gang (Three Compartment)
• ➤Bhalaji Associates-1012-D: Shrinkage Bar Mould - Four Gang (Four Compartment)

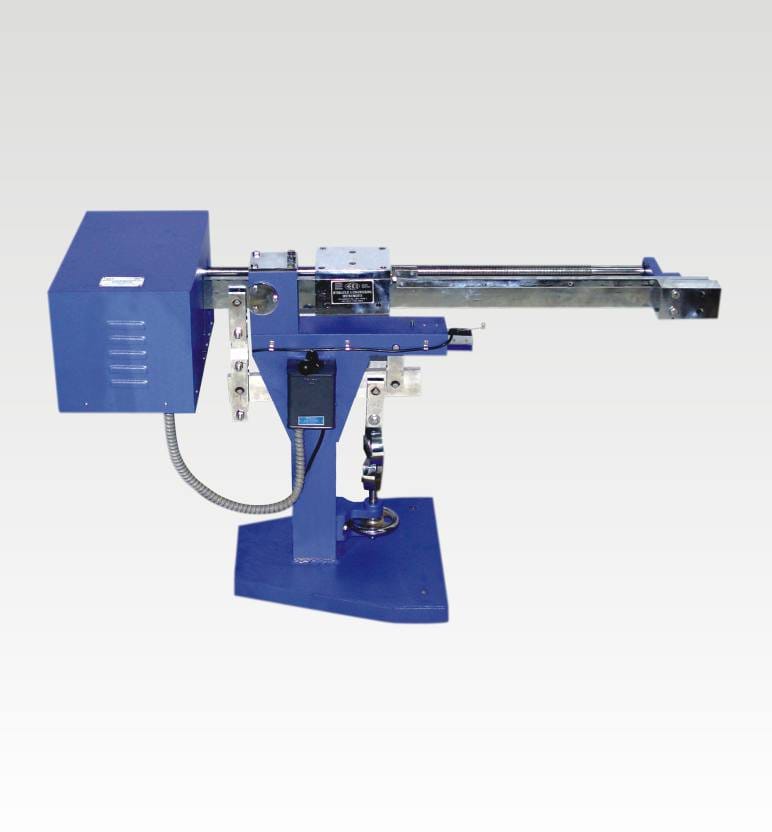

Tensile Strength Tester Electrically Operated

Model No : BA-034

Standards : IS 516, BIS 1881

Specification : The instrument employs a friction free, accurate, double lever system, the load being applied by means of sliding weight on the top lever. The capacity of the units is 900 kgs. After fixing the briquette in the jaws, the machine is switched on. The sliding weight slides over the calibrated lever thus applying tension to the specimen. A micro switch fitted instantly stop the machine on failure of the briquette and on failure the tensile load is accurately 0.5kg. By means of a marker provided on the sliding weight to its zero position. Suitable for operation on 230 V, 50 cycles, Single Phase, A.C. supply. Supplied complete with one brass briquette mould and one base plate.

• ➤Filling Hopper.
• ➤Base

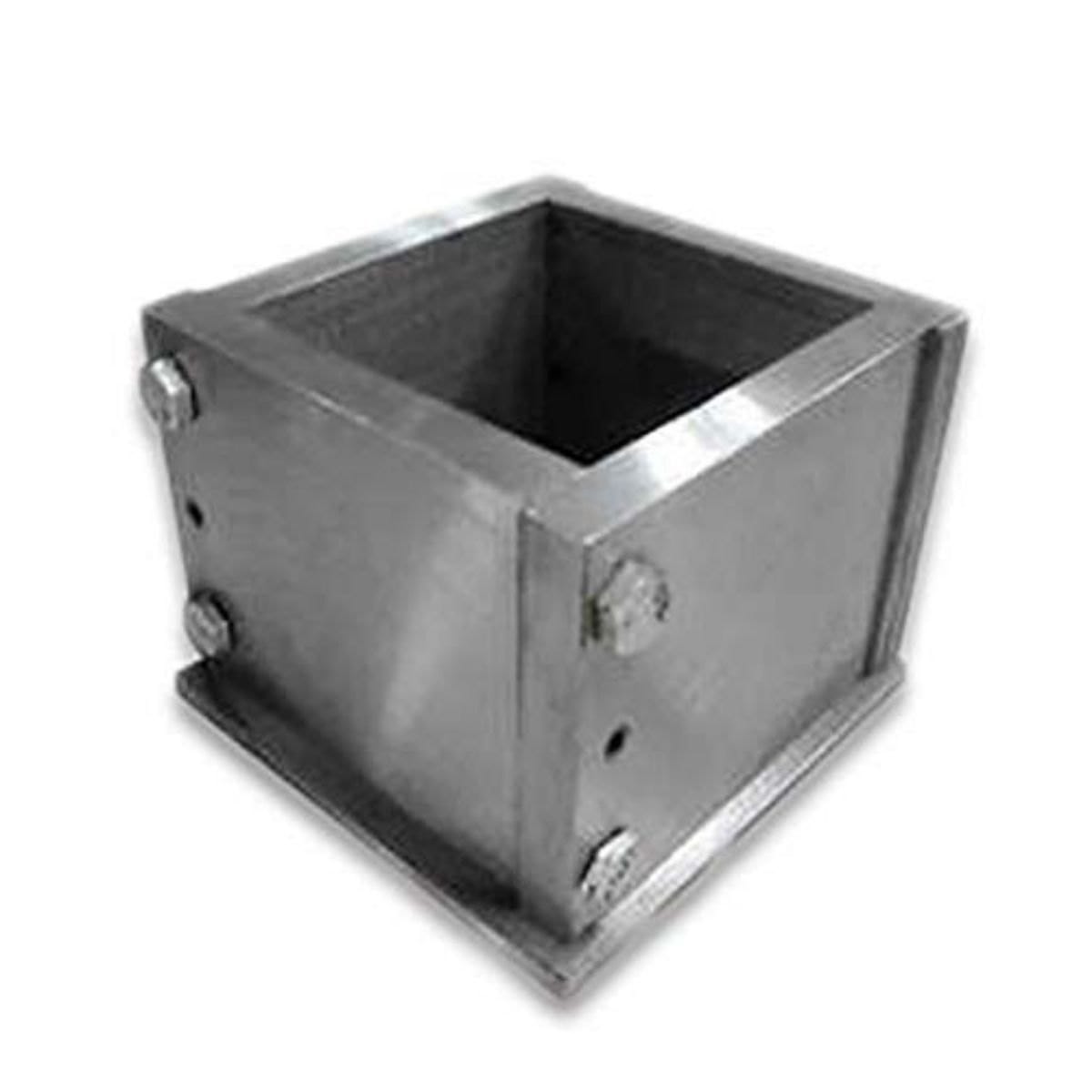

Cement Cube Mould 70.6 mm

Model No : BA-035

Standards : IS 516, BIS 1881

Specification : The Cement Cube Mould of 70.6 mm size is manufactured from high-quality cast iron or mild steel, ensuring durability and precise dimensions. It features internal surfaces that are smoothly machined for easy demoulding and accurate cube formation, with dimensional tolerance maintained within ±0.2 mm as per IS:10086 and IS:516 standards. This mould is used primarily for preparing cement mortar cubes to test compressive strength in laboratory conditions. It comes with a robust construction assembled using clamps or bolts to retain its shape during casting, making it an essential tool for quality control in cement testing.
