Products

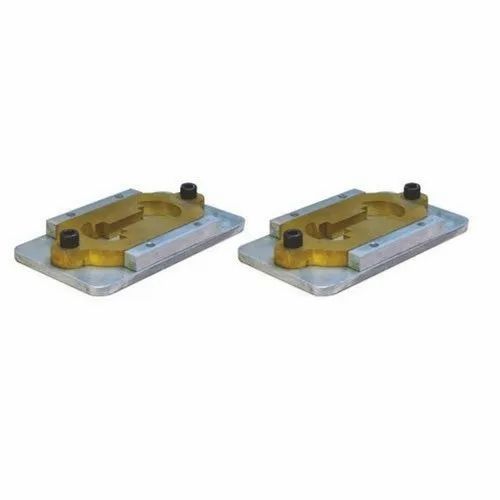

Elastic Recovery Mould

Model No : BA-0001

Standards :0001

---

Specification : A set of three moulds as per IRC-SP-53-2002 made of brass /gunmetal with the shape, dimensions and tolerances. The ends B & B` are known as clips, and the parts A & A' are known as sides of the mould. The dimensions of the mould shall be such that when properly assembled it will form a briquette specimen having the following dimensions. Total length : 75 ± 0.5 mm

• A = 36.5 ± 0.1 MM
• B = 30.0 ± 0.1 MM
• C = 17.0 ± 0.1 MM
• D = 10.0 ± 0.1 MM
• E = 10.0 ± 0.1 MM

SEND INQUIRY

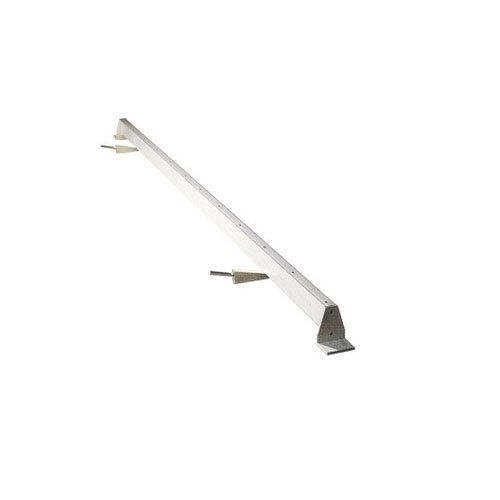

Straight edge (3 meters)

Model No : BA-0002

Standards : 0002

---

Specification : A straight edge approximately 3 meters in length may be used to determine lateral surface regularity of a road surface. This lightweight apparatus is made up of mild steel or aluminum as per customers requirement and is equally supported at both ends producing a set height between the road surface & the beam. Any vertical irregularity is measured using incremented wedges.

SEND INQUIRY

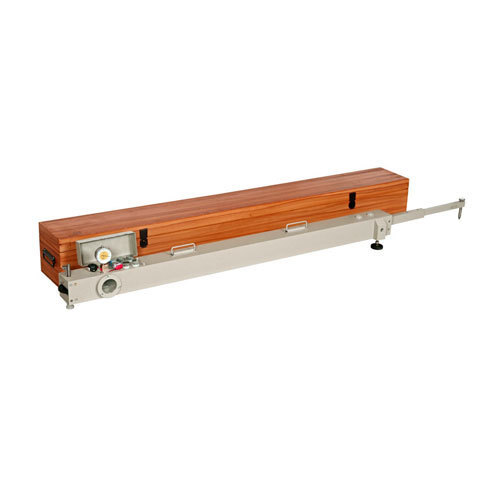

Benkelman Beam

Model No : BA-0003

Standards : AASHTO T 256

---

Specification : Lightweight Aluminum construction

• Ease of Transportation
• Unique Telescopic Design Simplifying Field set up
• Compact, Thereby reducing the amount of storage space needed

Benkelman Beam utilizes the technique of using balanced beam in conjunction with a suitable vehicle to measure road flexure The improved Benkelman Beam is a convenient, accurate device for measuring the deflection of flexible pavements under moving wheel loads. Operating on a simple lever arm principle, the unit consists. Supplied with carrying case.

Note: Benkelman Beam with Digital Dial Gauge also available at an extra cost

SEND INQUIRY

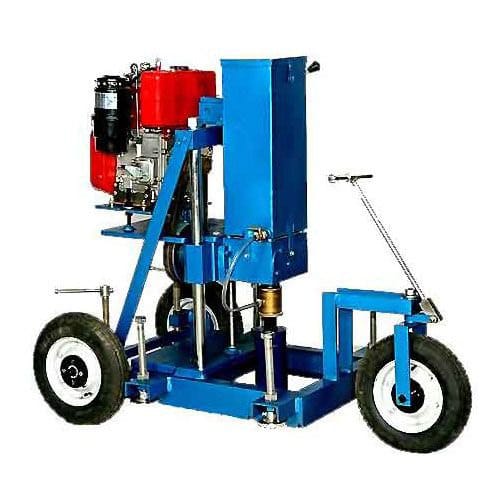

Pavement Core Drilling Machine

Model No : BA-0004

Standards : 0004

---

Specification : The Pavement Core Drilling Machine is petrol engine powered. Road/Building drill has been designed specifically for the purpose of drilling test cores from or holes in, Roads, Airport Runways, Bridges etc. The Machine comprises of two vertical support columns, which carry the Drill head/Engine assembly with the help of screwed spindle. The 5 HP petrol/Diesel engine with pulley mechanism works with minimum vibrations. The double precision bit advances with screwed spindle, which provides a constant, accurate drill pressure, minimum core chipping & long bit life. The complete assembly is supplied on a rigid metal base with leveling facility and is suitable for vertically down coring applications only.

• Bit Diameter Varying from 25mm to 150mm
• Maximum depth of core 700mm
• Drill Speed 475 & 800 R.P.M.
• Guide Shafts 50mm dia
• Screwed Spindle 20mm dia
• Water Tap 12mm
• Drill Wrenches Included
• Water Tank Included
• Levelling Pads Included

SEND INQUIRY

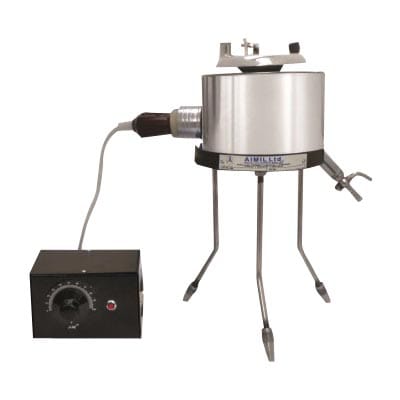

Standard Tar Viscometer

Model No : BA-0005

Standards : 0005

---

Specification : For determining the viscosity of cut back bitumen and road oil. The viscometer consists of a chrome plated copper bath, with a drain valve and a central tube to receive the test cup and to position the stirrer, and is mounted on a stand with levelling feet. Stirrer has a curved shield and is provided with an insulated handle, thermometer socket and swivel support for the valve.

SEND INQUIRY

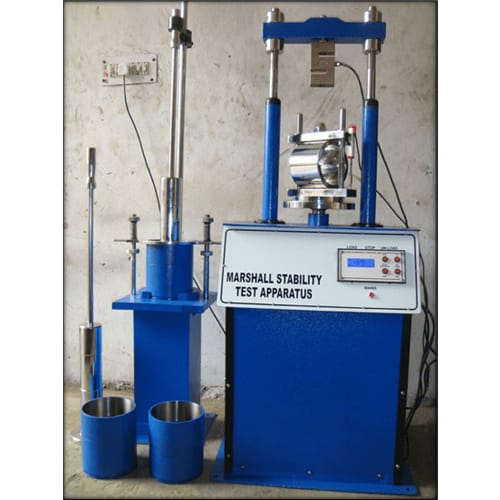

Marshall Stability Test Apparatus

Model No : BA-0006

Standards :ASTM: D 1559 T- 62. BS 598-107

---

Specification :
Marshall Apparatus Consists Of:

• ➤ Robust construction
• ➤ 50KN capacity
• ➤ Rate of travel 50.8mm/min
• ➤ Safety cut-off switch
• ➤ Cast Iron Mortar Cube Mould 50mm, Single Gang
• ➤ It consists of body housing, a geared screw jack and motor drive mechanism suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply.
• ➤ MARSHALL LOAD FRAME 1 No.
• ➤ Breaking Head Stability Mould, with a dial gauge ( having 25mm travel and 0.01mm least count), for flow measurement 1 No.
• ➤ Compaction Mould, Steel cylindrical 3 Nos.
• ➤ Base Plate 3 Nos.
• ➤ Extension Collar 3 Nos.
• ➤ Compaction Pedestal, Manual Operation, Comprising a steel plate capped on a wooden post. A Mould Clamp is fitted to the top of the plate . 1 No. Compaction Hammer, satisfies BS 598. The hammer has a 4535 g sliding weight with a free fall of 457 mm 2 Nos.
• ➤ Load Transfer Bar 1 No. Paper Discs, Non absorbent, 11 cm diameter pack of 100 No. 1 Pkt.

SEND INQUIRY

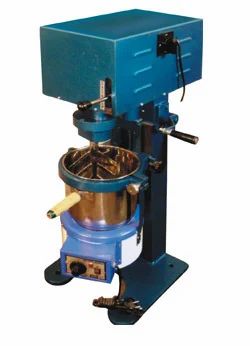

Mixer With Heating Jacket

Model No : BA-0007

Standards : 0007

---

Specification : A 6-litre Mixer Used in conjunction with an Iso Mantle, is suitable for mixing samples of Asphalt. Bench mounting Mixer, 6 liter nominal capacity. Supplied with bowl, beater and whisk. Motorized with two speed operated on 230 V A.C., Single Phase.

SEND INQUIRY

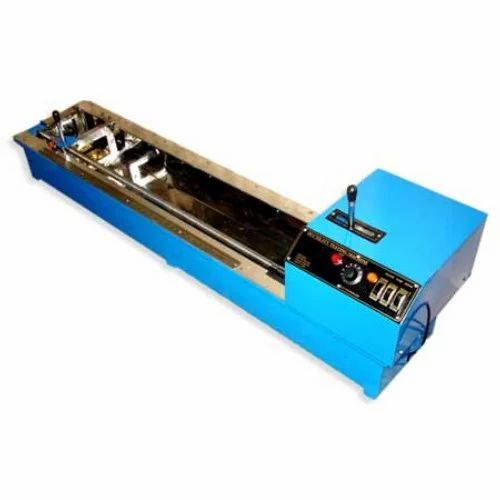

Ductility Testing Apparatus

Model No : BA-0008

Standards : IS 1208-1058, ASTM D 113, IP32, 55, AASHTO T 51

---

Specification : Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a stainless steel lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 50 mm/min and 10 mm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

Complete With: Ductility Mould, with Base Plate 3 Nos. Thermometer IP 38° C, Range: 23° C to 27° C

SEND INQUIRY

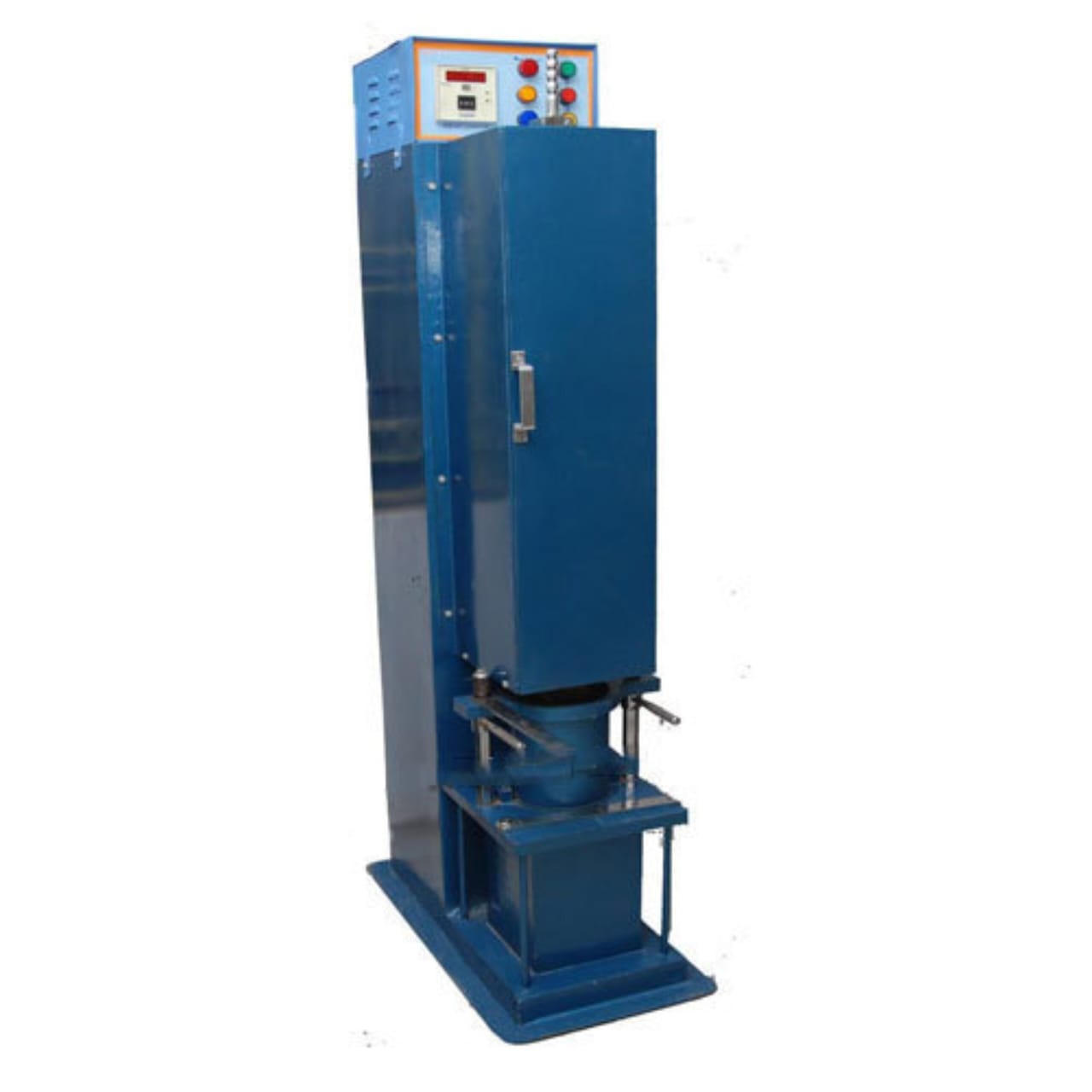

Automatic Compactor For Bituminous Mixes

Model No : BA-0009

Standards : BS 598-107

---

Specification :

• ➤ Rugged construction to withstand hard work
• ➤ Fully automatic and easy to operate
• ➤ Uniform compaction
• ➤ Automatic Preset Blow Counter

The Automatic Compactor eliminates the laborious process of manual compaction and an even degree of compaction is achieved. The driven mechanism lifts the weight of 4.5kg and drops it through a correct height of 457 mm. The rammer foot is removable, which facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An Automatic Blow counter enables the number of blows to be present before each test and automatically stops the machine on completion. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

Note:
Also available for modified compaction test (10.2 Kg.)

Our compaction factor apparatus has been developed with the best quality materials like stainless steel and delivered appropriate finishing and dimensional accuracy to ensure precise results for the engineers and technicians. The compaction factor apparatus conforms to the standards IS 1199 and 5515 and BS 1881 – 103. Our compaction factor apparatus has been developed with the best quality materials like stainless steel and delivered appropriate finishing and dimensional accuracy to ensure precise results for the engineers and technicians. The compaction factor apparatus conforms to the standards IS 1199 and 5515 and BS 1881 – 103.

SEND INQUIRY

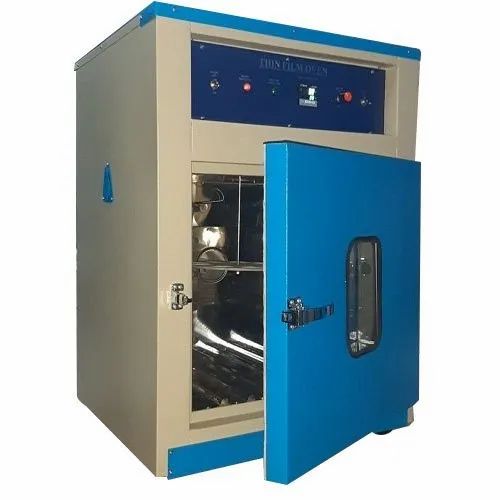

Loss On Heating / Thin Film Oven

Model No : BA-0010

Standards :BS 2000-45 ASTM D6, D 1754 AASHTO T 47, T 179

Specification : This dual purpose oven is designed to determine the loss in weight of bitumen and flux oils (Loss on Heating test) and the effect of heat and air on Asphaltic materials (Thin Film test). The unit is heavily insulated and has a double glass door for viewing the test chamber thermometer and samples. Temperature is controlled at 163° C ± 1° C by means of a variable temperature controller and thermostat. Two rotating platforms are supplied with each oven: One accepts 9 standard penetration cups for the loss on heating test, the other accepts two 140mm diameter test pans for the thin film test. The platforms are rotated at 5 to 6 rpm by an external motor.

Chamber Dimensions: 350 x 350 x 350 mm (L x W x H) Series Loss on Heating / Thin Film Oven Operating Voltage 230 V A.C. Single Phase Aluminium Test Pan 140 mm diameter x 9.5mm deep.

SEND INQUIRY

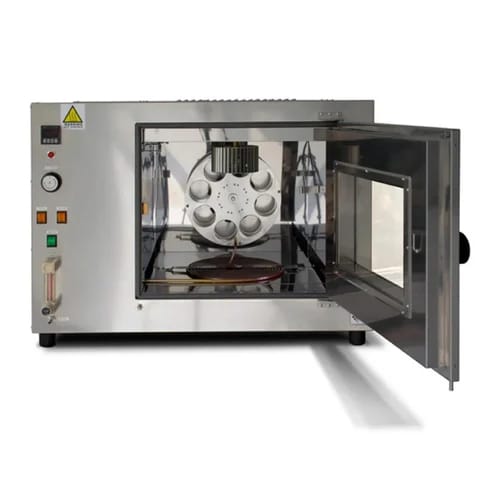

Rolling Thin Film Oven

Model No : BA-0011

Standards : 0011

---

Specification : The super pave PG binder specification looked for tests which would closely simulate field performance. Hotmix Asphalt binder experiences significant aging during the manufacturing and laying process. Investigating this phenomenon within a laboratory environment, with a repeatable and simple test is very useful within the design process. The rolling thin film oven (RTFO) test is used to measure the effect of heat and air on a moving film of semisolid Asphalt binder. The results of this treatment are determined from measurements of the binder properties before and after the test. Repeatability of the test is directly related to the accuracy with which the oven temperature can be maintained and the reproducibility of the thermal rise time of the system. Super accurate P.I.D. Controller

Construction: Double-walled construction, 16 -gauge welded steel exterior, 18-gauge corrosion resistant stainless steel interior

• ➤ Insulation: 89 mm of high density fiberglass insulation
• ➤ Controller: Programmable microprocessor UL listed
• ➤ Temperature display: Measured temperature – 4 digit red LEDs
• ➤ Temperature set point: 4 digit green LEDs
• ➤ Thermal Protection: Prevents oven from overheating in the event of failure
• ➤ Temperature Range: Ambient to 200°C
• ➤ Vents: Double exhaust vents for dissipation of expended volatile
• ➤ Air Flow Adjustment: Needle valve (long taper)
• ➤ Air Pressure Gauge: Range 0 – 100 PSI
• ➤ Heat Exchanger: 5/16 inch dia. copper tube
• ➤ Electrical Supply: 230 V AC 50 Hz single phase
• ➤ Dimensions: 1016 x 660 x 915 mm (w x d x h)
• ➤ Estimated Weight: 100 Kg

SEND INQUIRY

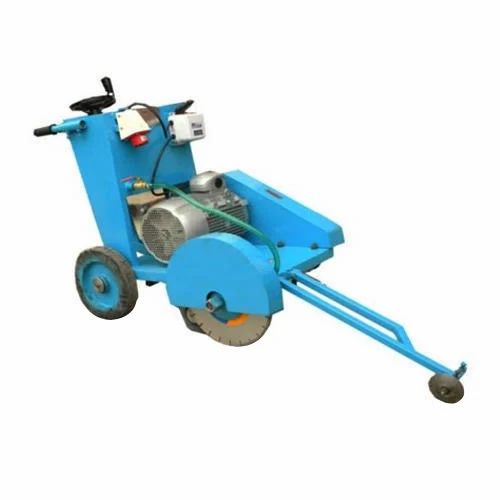

Asphalt Concrete Cutting Machine

Model No : BA-0012

Standards :

---

Future:We are affianced in offering a quality assortment of Asphalt Concrete Cutter that has gained wide appreciation among our clients for its high speed operations. This cutter is basically used for cutting concrete and marbles in construction industry. Provided cutter is manufactured by our dexterous professionals using supreme quality components and progressive techniques in line with international standards. In addition to this, we provide this Asphalt Concrete Cutter to our clients at nominal prices.

• ➤ Sharp blade
• ➤ Lower power consumption
• ➤ High performance
• ➤ Robust design

• ➤ Minimum Water : 10 Lit/Min.
• ➤ Maximum Depth : 1600mm
• ➤ Width of Cut : 7 mm (16")
• ➤ Prime Motor – Electric
• ➤ With No. 1 Diamond Blade : 16x7mm

SEND INQUIRY

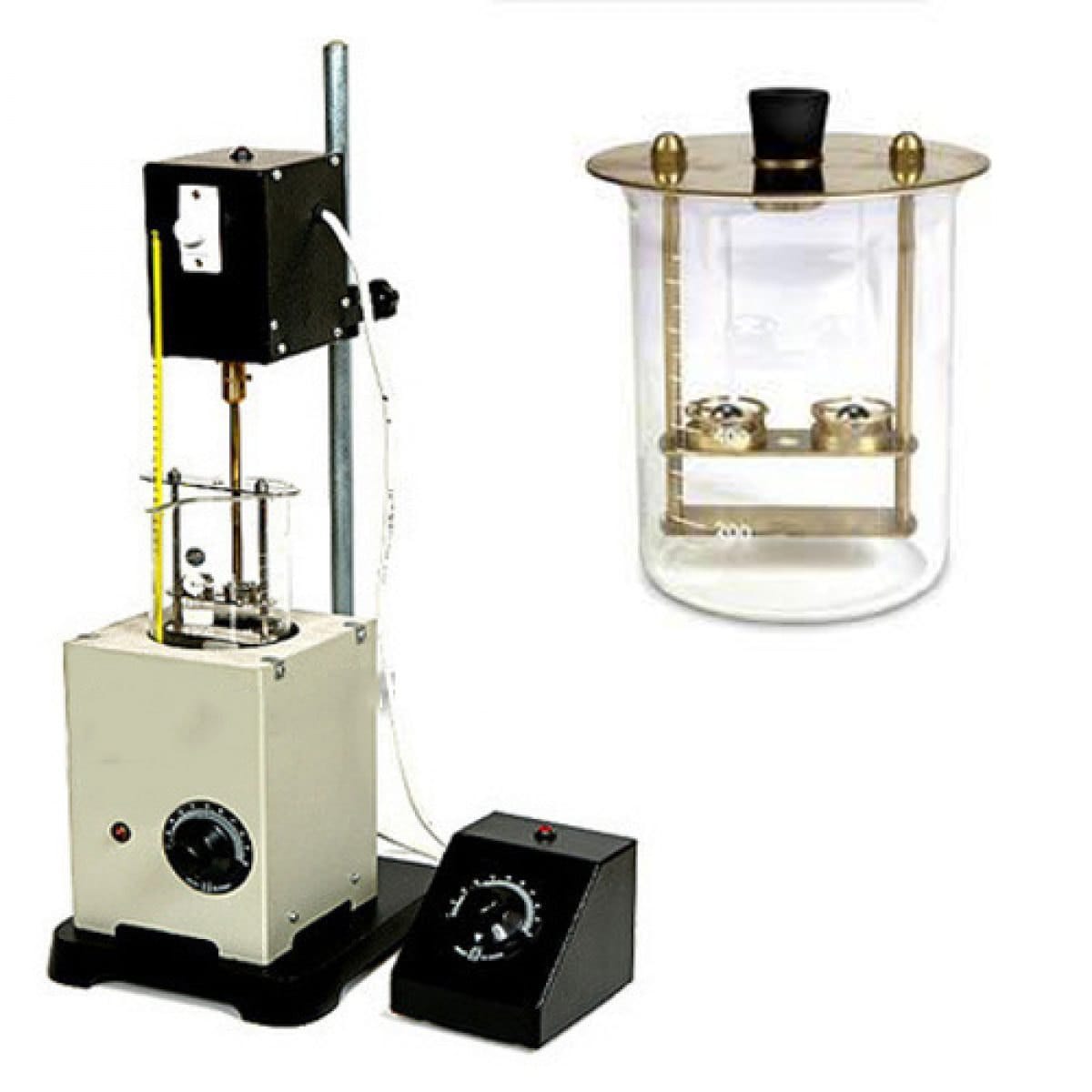

Ring And Ball Apparatus Electrical

Model No : BA-0013

Standards :ASTM D36, AASHTO T 53, BS 2000

---

Specification :
Electrical heating, with a Heater and Energy Regulator, Suitable for operation on 230 V, 50Hz, Single Phase, A.C. supply. Each unit is supplied with bath of heat resistant

Glass and the following
A	Tapered Rings	2 Nos.
B	Ball Centering Guide	2 Nos.
C	Steel Ball, of 9.5mm dia.	2 Nos.
D	Ring Holder	1 No.
E	Electric Heater (Hot Plate)	1 No.
Essential Accessories:
F	Thermometer IP 60°C, Range :	2°C to 80°C
G	Range	30°C to 200°C

SEND INQUIRY

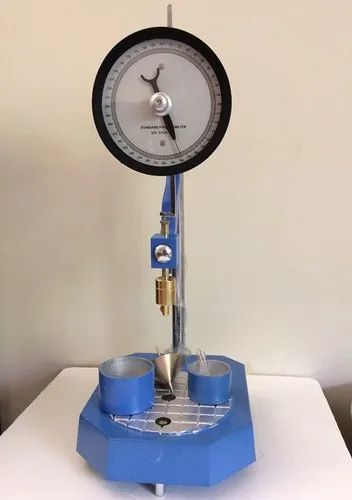

Standard Penetrometer

Model No : BA-0014

Standards :ASTM D5, BS 2000

---

Specification : It consists of a vertical pillar mounted on a base provided with leveling screws. The head, together with dial plunger rod a cone (or needle) slides on a pillar and can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading. Supplied with a bitumen penetration needle, ring weight one each 50 gms. and 100 gms. two sample containers.

Accessories: Penetration cone for empirical estimation of penetration of lubricating grease, petroleum jelly etc.

SEND INQUIRY

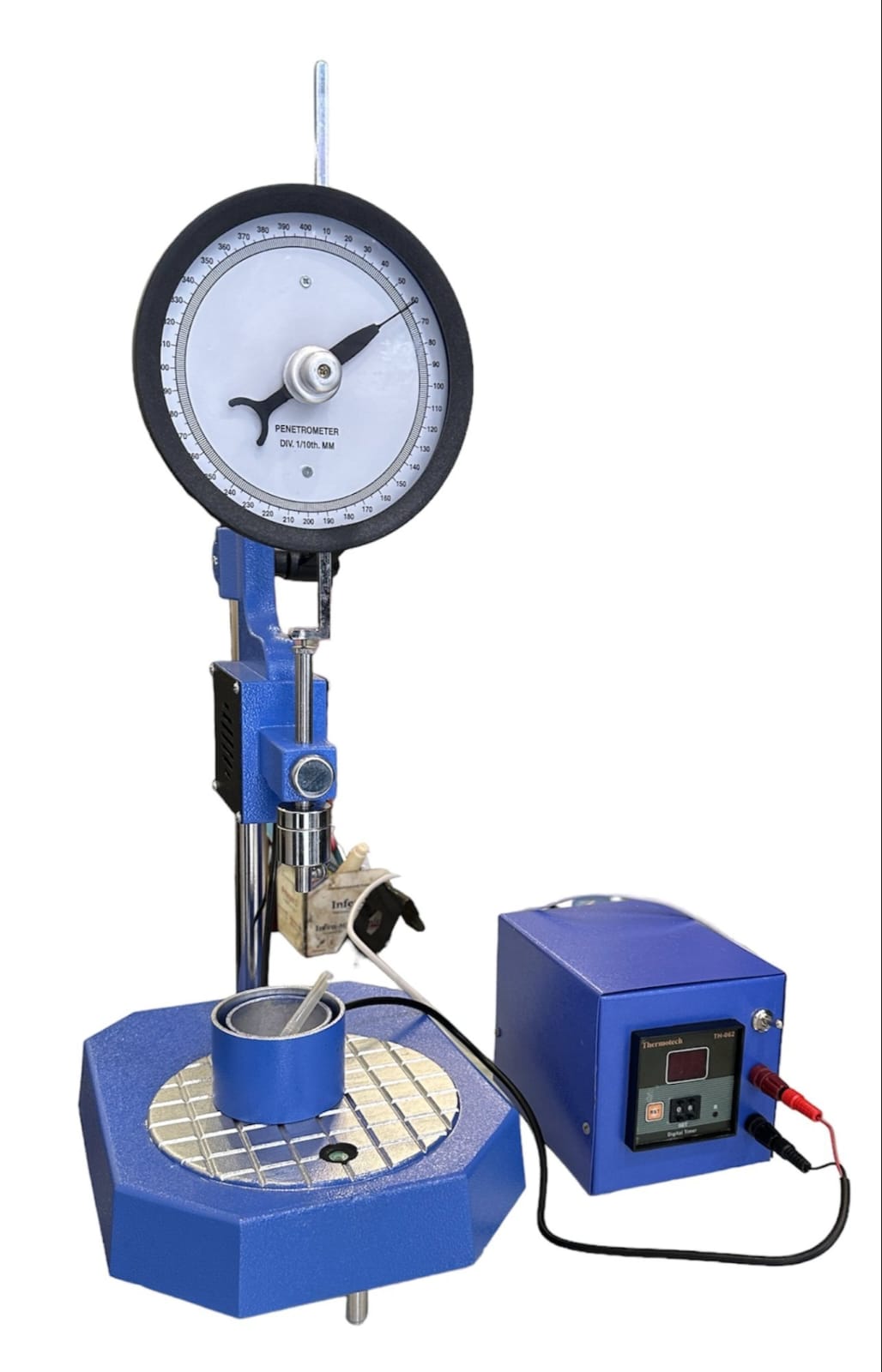

Digital Penetrometer

Model No : BA-0015

Standards :IS 310, 1203, 1448, IP 60, 49, 50 ASTM D5, 217, D637, BS 2000-49

---

Specification : Same as standard penetrometer but the unit is compact with timer to control duration of penetration. The instrument is provided with lead screw gear arrangement, Leveling screws, Spirit level and a digital preset timer

SEND INQUIRY

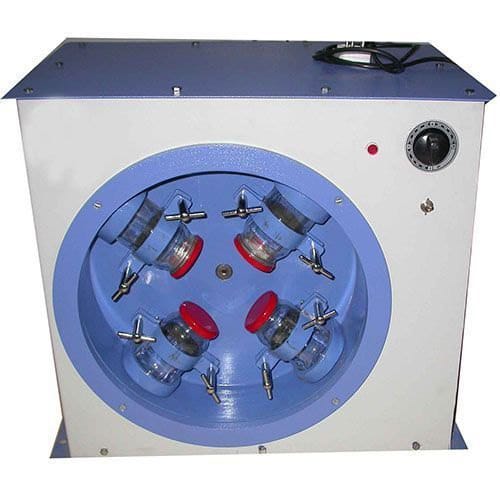

Stripping Value Apparatus

Model No : BA-0016

Standards :IS 2386 (PART IV) 9377 & BS 812:112

---

Specification : A Stripping Value Apparatus is used to measure the stripping value of bituminous (asphalt) mixes, which indicates how well bitumen adheres to aggregate particles in the presence of water. The apparatus features a circular tray that rotates at about 100 rpm, holding four 400cc bottles at a 90-degree angle with their openings facing the tray's center. Samples of the bituminous mix are placed in the bottles and agitated for 15 minutes to simulate moisture-induced stripping. The percentage of stripped aggregate is then determined by visual inspection.

Components and Operation :

Motor and Tray: An electrically driven geared motor rotates a circular tray in a vertical plane.

Bottles: Four 400cc bottles are mounted on the tray at a 90-degree angle to each other, with their openings directed toward the center of the tray.

Time Switch: A time switch is included to ensure consistent agitation times.

Sample Placement: The bituminous mix samples are placed inside the bottles.

Agitation: The apparatus agitates the samples for approximately 15 minutes.

Visual Inspection: After agitation, the samples are removed, and the percentage of stripped aggregate (dislodged bitumen) is estimated visually.

SEND INQUIRY

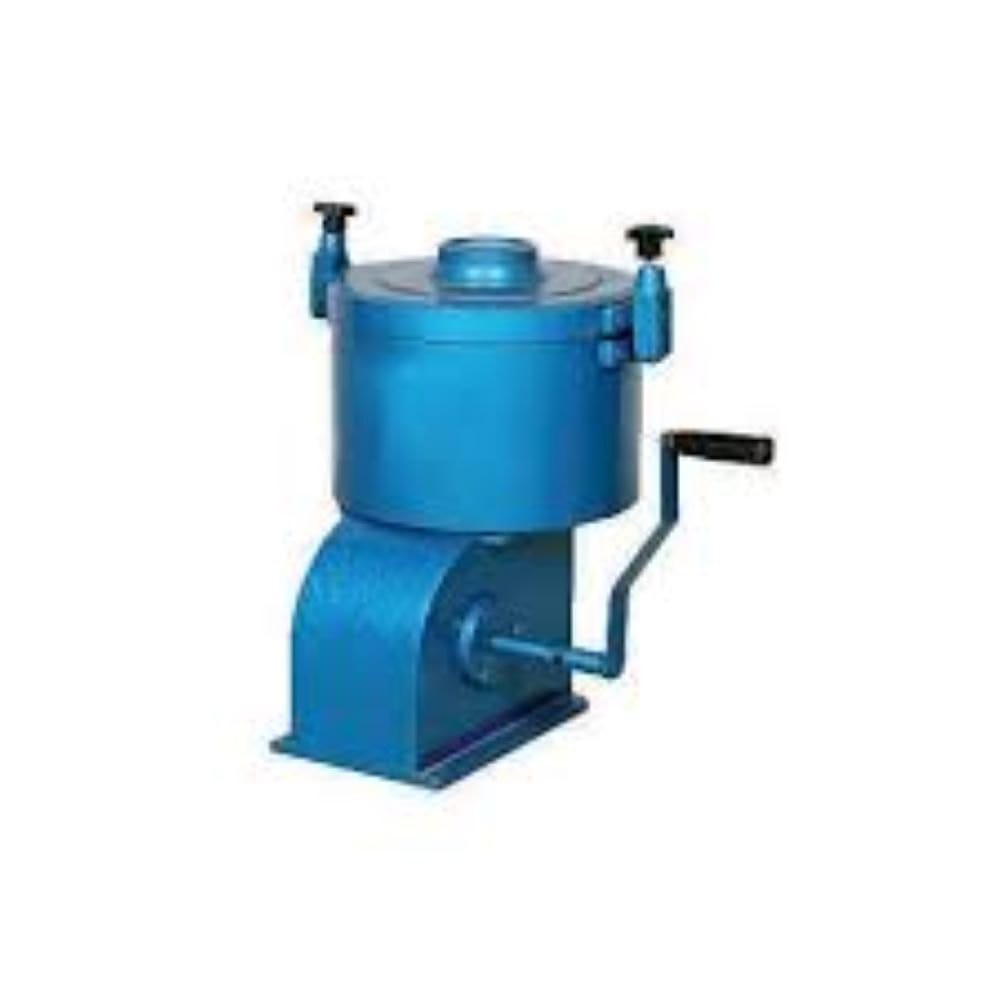

Centrifuge Extractor Hand Operated

Model No : BA-0017

Standards :ASTM D2172, AASHTO T-58, T-164

---

Specification : The Instrument is used for determination and checking of Bitumen percentage in Bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable Aluminum rotor bowl, Capacity 1500 gms. With a cap and tightening nut. The bowl assembly is mounted on a vertical shaft, which protrudes from a cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing.

SEND INQUIRY

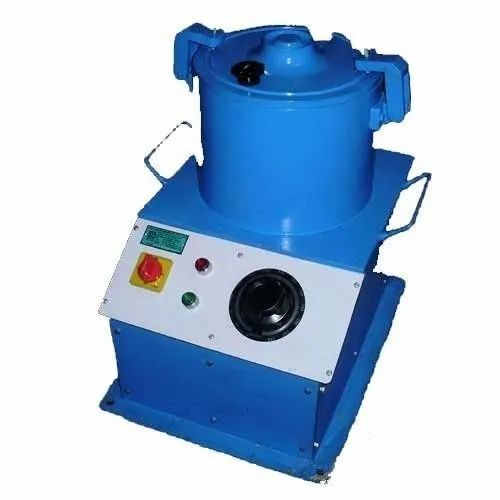

Centrifuge Extractor Motorized

Model No : BA-0018

Standards :ASTM D2172 AASHTO T-58, T-164

---

Specification : Centrifuge Extractor, Electrical Operation, Capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

SEND INQUIRY

Kinematic Viscometer Bath

Model No : BA-0019

Standards :0019

---

Specification : This bath is designed and developed under the strict supervision of our experienced professionals in accordance with the international quality standards. Our offered bath is thoroughly checked on various parameters to ensure zero-defect. This bath is widely used in national laboratories and pharmaceutical industries.

Other Information: The accompanying absolute kinematic viscosity bath are utilized to measure supreme thickness of consistency reviewed clearing bitumen (IS:73:2006) at 60°C as per IS:1206 (part II) (like ASTM D 2171), which utilizes a vacuum slender viscometer. Complete absolute viscosity testing equipment adjusting to IS: 1206 (part II) method for testing tar and bitumen materials: determination of absolute viscosity with the accompanying segments.

Consistent Temperature Bath:

Thermometer for Bath: mercury in glass, run 37.8 to 82°c, and graduations of 0.2°c

Timing Device: a stop watch is fit of perusing up to 1 second.

Cannon: manning vacuum viscometers - viscometer holder and silicone stopper. Size 12 and size 13 (one every) [size 12 is suitable for testing VG-10 and size 13 is suitable for testing VG-20, VG-30, and VG-40 bitumen.

SEND INQUIRY

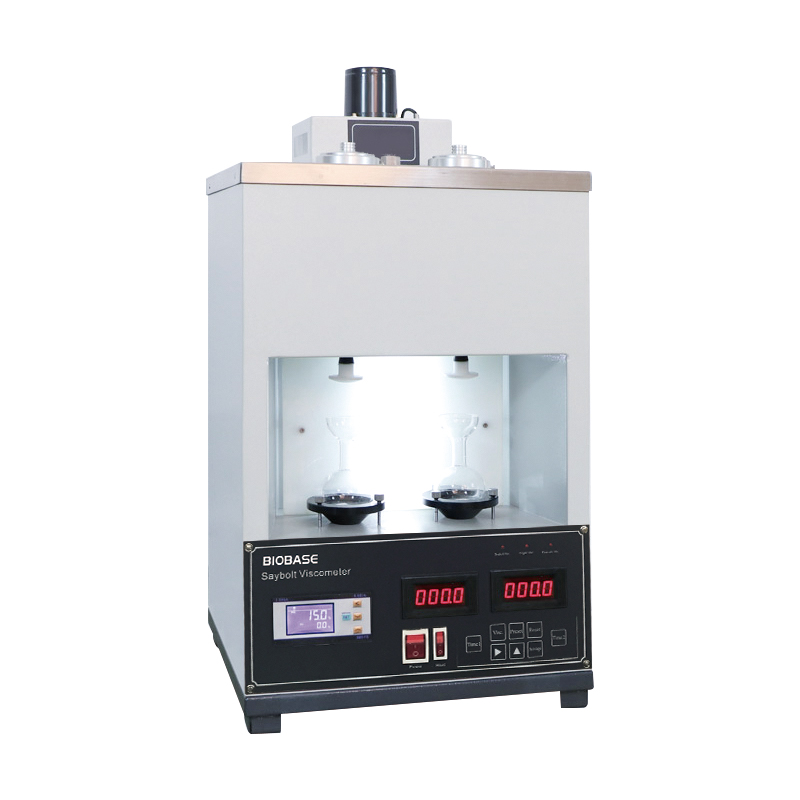

Say Bolt Viscometer

Model No : BA-0020

Standards : ASTM D88, D244, AASHTO T72

---

Specification : Say bolt Viscometer, Electrically Heated, ASTM D88, D244, AASHTO T72 for the empirical measurement of Say bolt Viscosity of petroleum products at specified temperatures between 70OF and 210OF. This is also used for determining the Saybolt Furol Viscosity of bituminous materials at temperatures of 250, 275, 300, 350, 400 and 450OF. It comprises one each of Cylindrical Oil Cup, Universal Tip, Furol Tip, Bath Fitted with immersion Heater mounted on a stand. Dimmer stat for temperature control, Stirrer with shield. Complete with insulated handle and thermometer support receiving flask, withdrawal tube, filter funnel, thermometer support for cup and circular spirit level. Suitable for operation on 230 V 50 Hz, Single Phase, A.C.

• ➤ Brass Oil Tube
• ➤ Receiving Flask, 60ml
• ➤ Universal and Furol Tip (Bhalaji Associates of 2)
• ➤ Filter Funnel
• ➤ Thermometer Support
• ➤ Heating Coil
• ➤ ASTM Thermometer Type 18 F Range : 66°F to 80°F
• ➤ ASTM Thermometer Type 19 F Range : 94°F to 80°F
• ➤ ASTM Thermometer Type 19 F Range : 120°F to 148°F
• ➤ ASTM Thermometer Type 20F Range : 134°F to 148°F
• ➤ ASTM Thermometer Type 21 F Range : 174°F to 188°F
• ➤ ASTM Thermometer Type 22 F Range : 204°F to 218°F
• ➤ ASTM Thermometer Type 77F Range: 245°F to 265°F
• ➤ ASTM Thermometer Type 77F Range: 295°F to 315°F
• ➤ ASTM Thermometer Type 78 F Range: 345°F to 365°F
• ➤ ASTM Thermometer Type 80F Range : 395°F to 415°F
• ➤ ASTM Thermometer Type 81F Range : 445°F to 465°F

SEND INQUIRY
