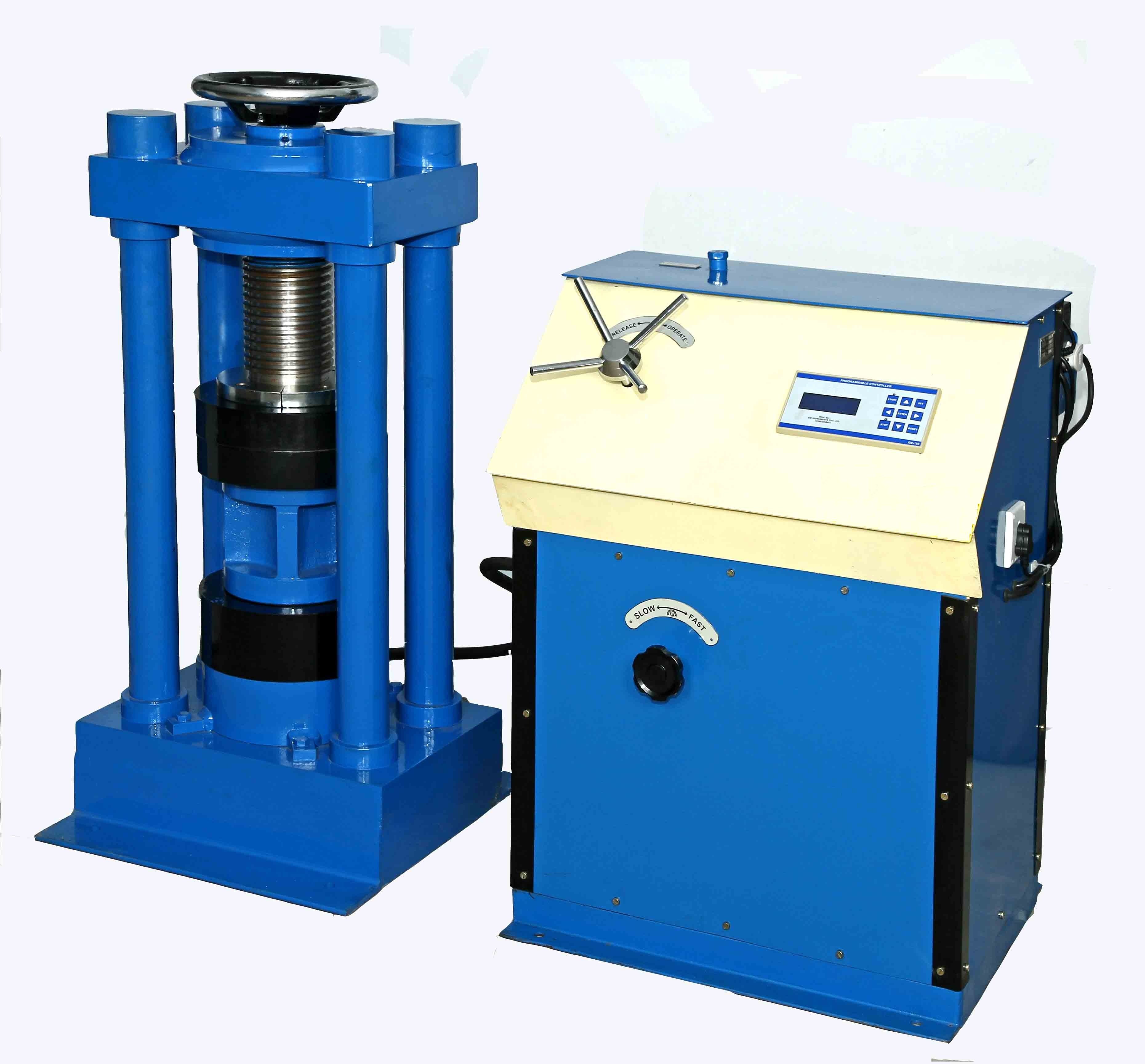

Digital Compression Testing Machine Channel and Pillar Type

Model No : BA-0001

Standards : IS 516, BIS 1881

Specification : The Digital Compression Testing Machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The Digital Indicator incorporates a 4-Digits display calibrated in Kilo Newton (kN) and preset to maximum load capacity fitted with micro switches to switch-off the motor when the load approaches the maximum capacity of the gauge, avoiding any overloading. Relays are incorporated so that the motor does not restart on its own after a power breakdown. The electrically operated pumping units are provided with a control knob to adjust the pace rate which can be effectively controlled by an experienced operator during the course of testing, by observing the progress of the Digital Indicator readings.

Optional:

• Ranges: 50 kN to 3000 kN
• Channel and Pillar Type Both Are Available
• Extra gauges can be attached to the machine (max. 1 nos.)
• Electrical connection: Single Phase 220 V A.C., or 3 Phase 440 V A.C.

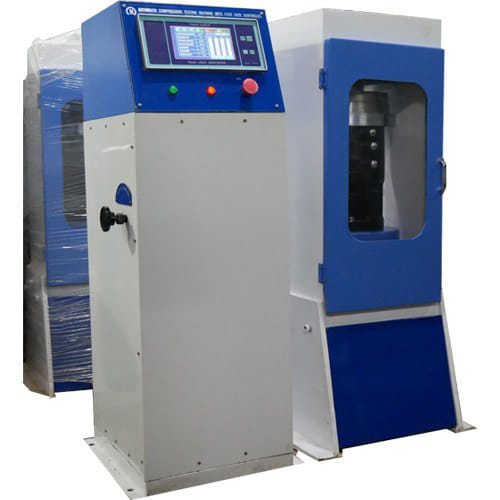

Fully Automatic Compression Testing Machine with Pace Rate Controller

Model No : BA-0002

Standards : IS 516, BIS 1881

Specification : Fully automatic compression testing machine with automatic peace rate controller (screen touch type) with a wooden handle. Total length approximately 73cm. The tube has the sharp angular edge which conveniently pierces cement bags. An air hole of approximately 3mm dia is drilled on the tube near handle. Total sample collected at one time is 300cm approximately.

High Performance Compression Testing Machine The best thing about this automatic machine is that its controller is incorporated with a four-line digital display and features the integral load pacing bar display, maximum load and stress result display and a 232 output. Results from 1000 completed tests can be stored in the memory and these results can be in English, Metric or SI units. The Calibration range of the machine is from 10% to 100% of the machine capacity, over which range the accuracy is ±1% of the applied load.

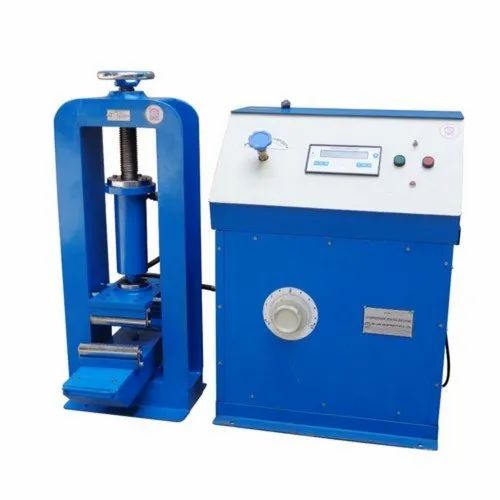

Flexure Digital Testing Machine

Model No : BA-0003

Standards : IS 516, BIS 1881

Specification : The Digital Flexure Testing Machine is designed to test flexural strength of concrete beams. The design provide maximum rigidity throughout their working range. The load is applied by the downward movement of the piston. A spacer is for testing different size of beams. The load is indicated on a calibrated digital load indicator of range: 0 - 100 kN x 0.1 kN (0- 10,000 kgf x 10 kgf). The digital load indicator is calibrated by Certified Proving Ring / Load Cells.

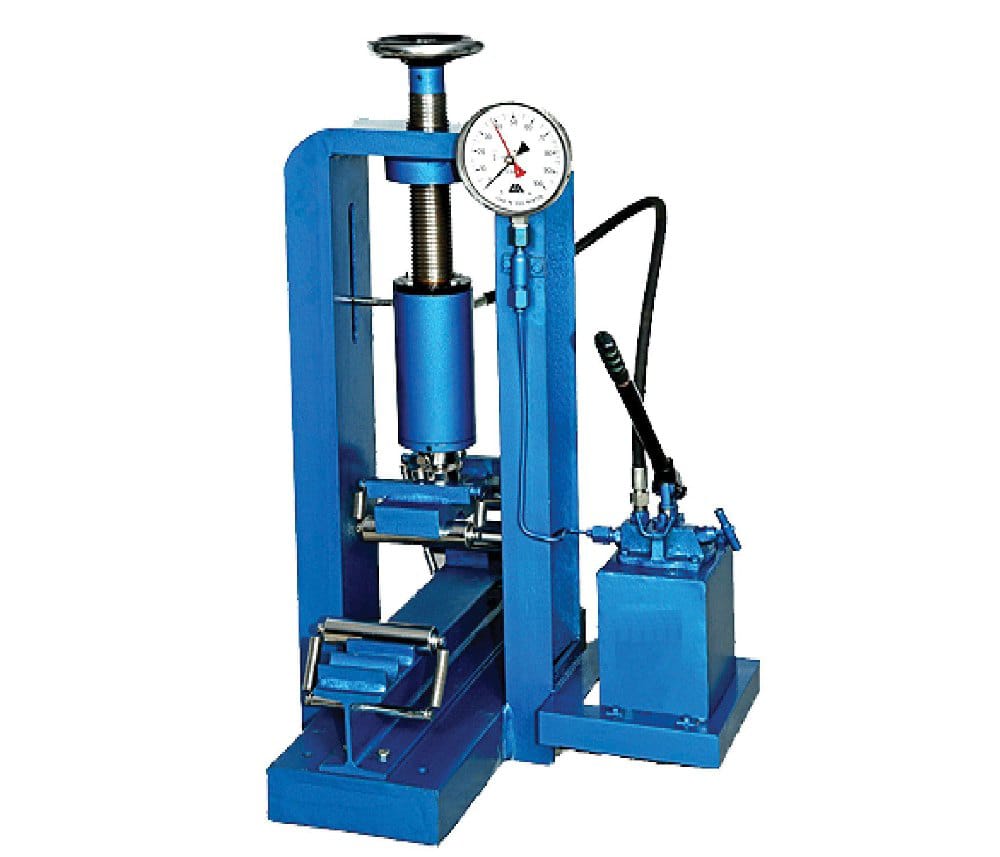

Flexure Testing Machine Hand Operated

Model No : BA-0004

Standards : IS 516, BIS 1881

Specification : The Flexure Strength Testing Machines are designed to provide maximum rigidity throughout their working range. The load is applied by the upward movement of a hydraulic ram. The jack can be raised or lowered for testing different size beams. The load is indicated on a calibrated Bourdon tube type Pressure Gauge of range: 0-100kN x 0.5kN (0-10,000 kgf x 50 Kgf). The load gauge is calibrated against NPL/ NCCBM certified proving ring.

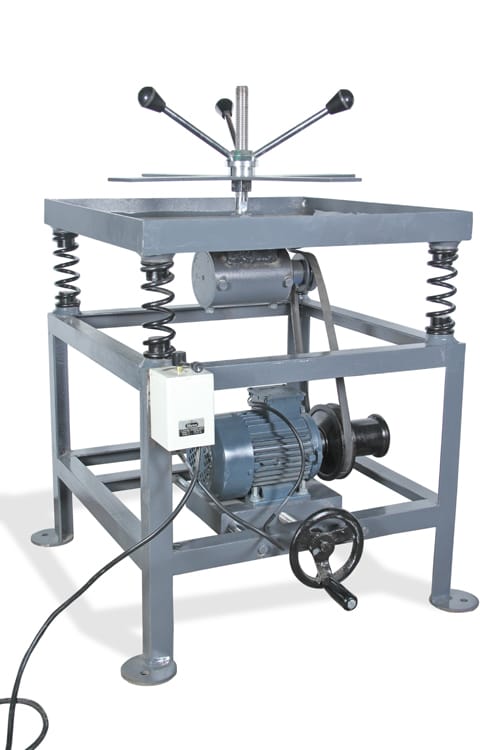

Cube mould vibrating machine

Model No : BA-0005

Standards : IS 516, BIS 1881

Specification : It is designed to carry a load of 140 kg . The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 500 x 500 mm and has stops along its edges to prevent moulds from walking off the table during vibration. A crass arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.

Note: Table top size : 750 x 750 mm & 1000 x 1000 mm also available at an extra cost. Both models operates on 440 volts, A.C. Three Phase.

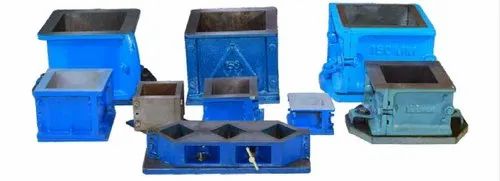

Cube Mould

Model No : BA-0006

Standards : IS 516, BIS 1881

Description: We offer Cube Moulds with base plates which are available in different sizes as per the clients’ specific requirements. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards.

Specification :
Find out the objective specifications of our cube moulds here below –

• ➤ Metric sized cube moulds are available with machined flat surfaces and ±0.2 mm accuracy attributes while finishing is within 0.2 mm
• ➤ Inch sized cube moulds are offered as machined flat with ±0.01 inch accuracy and with 0.01 inch finish
• ➤ The metal moulds are delivered complete with their base plate of metal together with the fasteners, clamps and springs
• ➤ Our metal cube moulds are made as per industry requirements and used for high-level testing of specimens
• ➤ Cast Iron Mortar Cube Mould 50mm, Single Gang
• ➤ Cast Iron Mortar Cube Mould 50mm, Three Gang
• ➤ Mild Steel Cement Cube Mould 70.6mm, with Loose Base Plate
• ➤ Cast Iron Concrete Mould 75mm Single Gang
• ➤ Cast Iron Concrete Mould 100mm Light Weight
• ➤ Cast Iron Concrete Mould 100mm Clamp Type (8.5 KG) Four Part
• ➤ Cast Iron Concrete Mould 150mm Light Weight 8KG
• ➤ Cast Iron Concrete Mould 150mm ISI Marked
• ➤ Cast Iron Concrete Mould 150mm Clamp Type (18 KG) Four Part
• ➤ Cast Iron Concrete Mould 150mm Clamp Type (16 KG) Two Part
• ➤ Plastic Mould 150mm

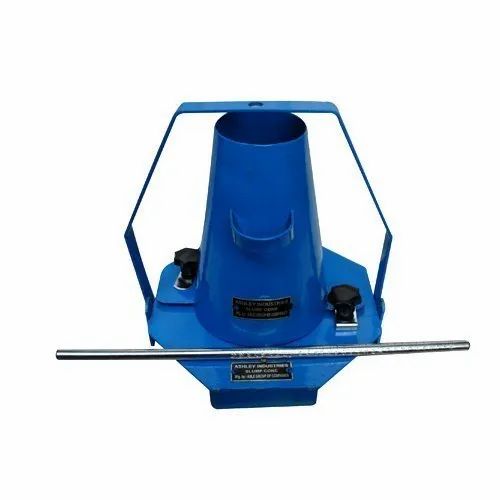

Slump Test Apparatus

Model No : BA-0007

Standards : IS 516, BIS 1881

Specification : The Concrete slump test is an on-the-spot test to determine the consistency as well as workability of fresh concrete. This test plays a vital role in ensuring immediate concrete quality in a construction project. It is used almost in every construction sites. The slump test is very simple and easy to handle. It also demands comparatively less equipment and can be done in a short period of time. These advantages of slump testhave made it very popular all over the world. In the slump test, workability of concreteis not measured directly. Instead, consistency of concrete is measured which gives a general idea about the workability condition of concrete mix.

Slump Test Apparatus Product specifications:
Here are the objective specifications of our slump test apparatus –

• ➤ The apparatus can be used for concrete mixes with maximum aggregate size of 38 mm.
• ➤ There is a slump cone made of steel. Its lower base diameter is 200 mm while at the top, it has diameter of 100 mm. Height is 300 mm.
• ➤ Foot pieces can be fixed to the clamps provided at the base plate. A lifting handle is also attached with the base plate for easy handling
• ➤ A 600 mm long and 16 mm wide graduated steel rod is provided as part of the apparatus.
• ➤ Slump test apparatus of Bhalaji Associates-test India is developed as per standards IS 7320 and BS 1881 – 102. Our apparatus is of very simple make yet it has been developed through the use of best quality materials including high tensile steel that is rust proof. Thus the apparatus delivers without any deformity or lack of accuracy for years.
• Our apparatus is of very simple make yet it has been developed through the use of best quality materials including high tensile steel that is rust proof. Thus the apparatus delivers without any deformity or lack of accuracy for years.

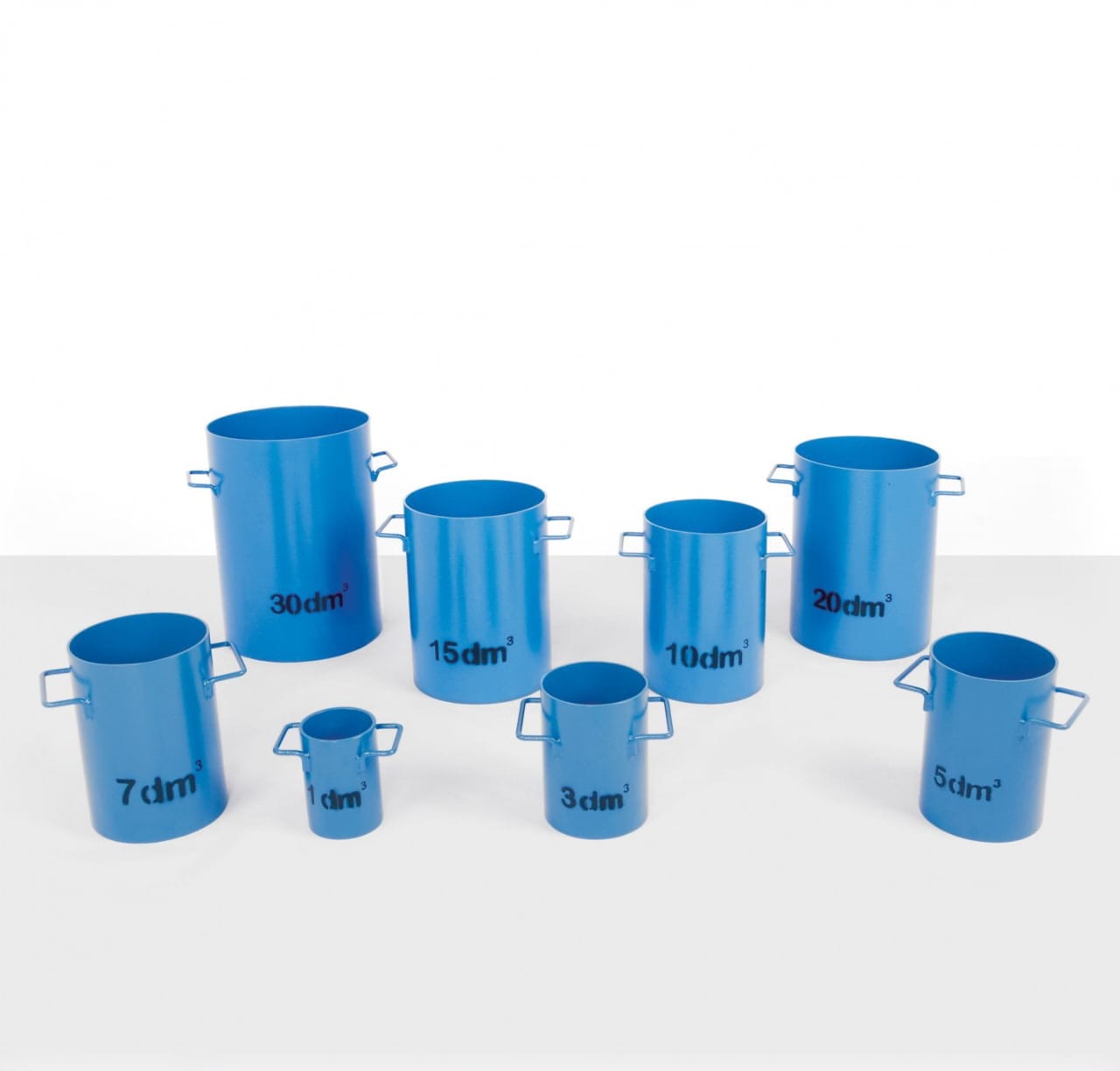

Bulk density

Model No : BA-0008

Standards : IS 516, BIS 1881

Specification : It Determines Bulk Density or unit weight of aggregates. It consists of a Calibrated Cylindrical Measures of sheet iron with handles. Capacities available 3, 5, 7, 10, 15, 20 & 30 liters. Complete with One Tamping Rod 16mm dia x 600mm long ZI 5008 both ends rounded.

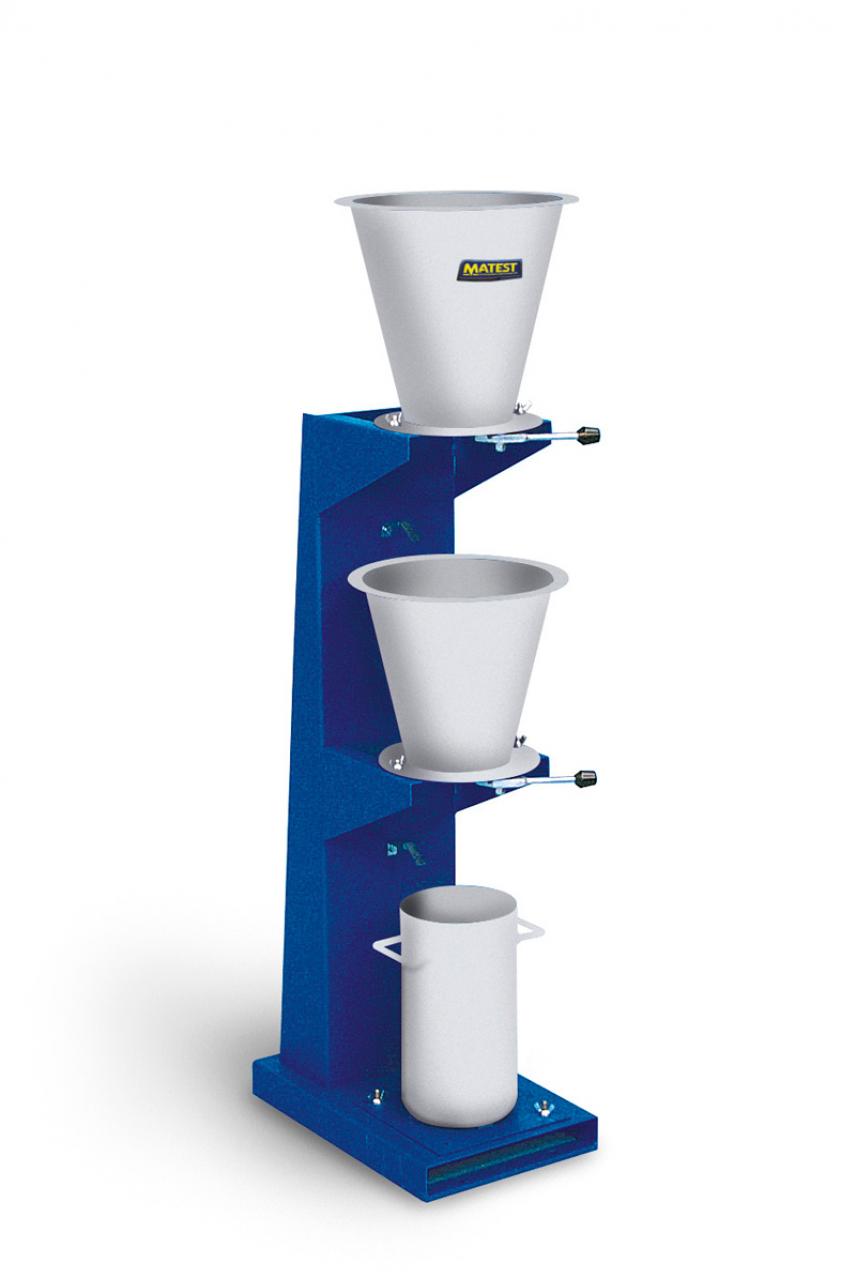

Compaction Factor Apparatus

Model No : BA-0009

Standards : IS 516, BIS 1881

Specification : Compaction factor is the ratio of the weight of partially compacted concrete to the weight of the concrete when fully compacted in the same mould. The weight of partially compacted concrete in relation to its fully compacted state is a reasonably good indication of the workability of concrete.

Compaction Factor Apparatus Product specifications:

• ➤The apparatus is made as a rigid metallic frame that has two conical hoppers and one cylinder at its base
• ➤The conical hoppers have hinged trapdoors with quick release catchers at the lower end
• ➤ The cylinder top is covered with a circular metal plate
• ➤A plaster trowel and a metal rod rounded at both ends (600 mm in length and 16 mm in diameter) is also provided

Our compaction factor apparatus has been developed with the best quality materials like stainless steel and delivered appropriate finishing and dimensional accuracy to ensure precise results for the engineers and technicians. The compaction factor apparatus conforms to the standards IS 1199 and 5515 and BS 1881 – 103. Our compaction factor apparatus has been developed with the best quality materials like stainless steel and delivered appropriate finishing and dimensional accuracy to ensure precise results for the engineers and technicians. The compaction factor apparatus conforms to the standards IS 1199 and 5515 and BS 1881 – 103.

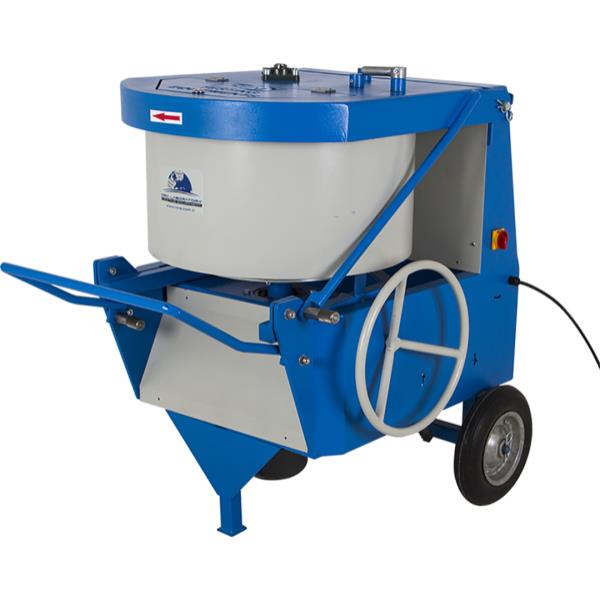

Laboratory Concrete Pan Mixer Machine (Capacity 40 , 60 ,90 Ltrs.)

Model No : BA-0010

Standards : IS 516, BIS 1881

Product Description: The Concrete mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cubes specimens when casted in the moulds. The Concrete Mixer developed is transportable on wheels. The design of mixing paddles ensure uniform & efficient mixing of cement & aggregate both in dry & wet conditions. This machine is suitable for aggregate size upto 20 mm. The equipment can also be put to use for mixing of any other material in dry / wet conditions. The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.

Laboratory Concrete Pan Mixer Machine Product specifications -:

Mixing Capacity : 40 ltrs. Overall Dimension : 910 x 875 x 1250 mm Motor : 2 HP, 960 RPM Power supply : 440 V, 50 Hz, 3 phase AC

Future -:

• ➤Portable, compact & easy to operate
• ➤Adjustable blades
• ➤Simple to clean & maintain

Laboratory Concrete Mixer (Motorized)

Model No : BA-0011

Standards : IS 516, BIS 1881

Specification : The Laboratory Concrete Mixer is used for preparing Mix Design of Concrete. It consists of a steel vessel of 55/ 110 Litres capacity, mounted on a frame. The vessel is rotated at 20-22 RPM with the help of a motor and a pulley arrangement. The vessel of laboratory concrete mixer can be titled to any angle by a hand wheel and counter weight. This facilitates mixing and discharge. Blades are provided inside the vessel to mix the material thoroughly. The large pulley wheel facilitates manual rotation of the drum during power failure. The drum, pulley wheel, and motor are mounted on a steel frame in these laboratory concrete mixer. The concrete mixer is fitted with ½ HP motor. Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply.

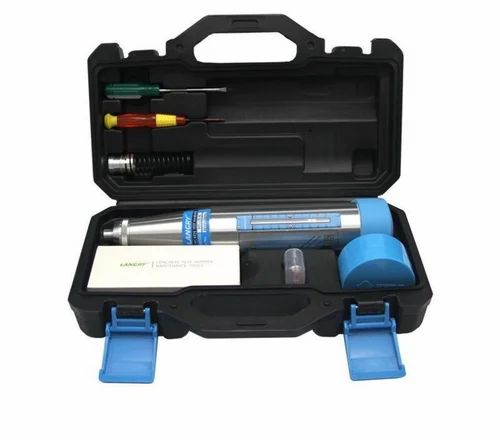

Concrete Test Hammer (Schmidt Hammer) N Type

Model No : BA-0012

Standards : IS 516, BIS 1881

Specification : The quality of concrete is mainly judged by its compressive strength directly affecting the loadbearing capacity and durability of concrete structures. ZI 2068 concrete test hammer (Schmidt Hammer N type) is used to measure the compressive strength characteristics of hardened concrete non-destructively, control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm.

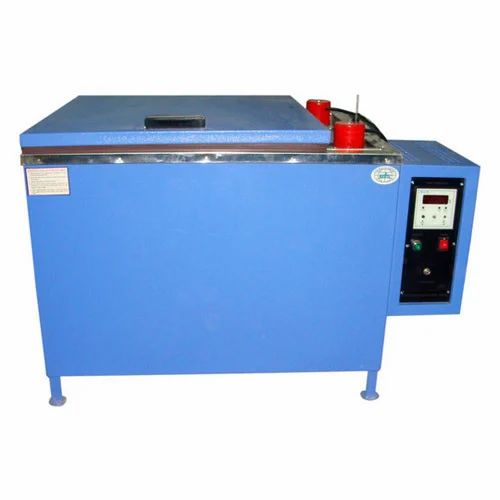

Cube Curing Tank

Model No : BA-0013

Standards : IS 516, BIS 1881

Features:

24 Hour cycle from time of mixing. Controlled 35° C or 100° C ± 2° C Curing Temperature for concrete. Controlled 27° C ± 2° C Curing Temperature for grey cement. The tank has been designed to accommodate 150mm / 70.6mm cube moulds upto 36/72 cube mould and fully insulated, complete with a hinged lid, heater, thermostat and re-circulated pump. Provision of two removable racks allowing free circulation of water around each mould. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank. The Tank is heated by an immersion heater under normal conditions and refrigeration system for grey cement the temperature is controlled at 35° C or 100° C ± 2° C / 27° C +2° C, expect for the 15 minutes after immersion of the freshly made specimens

Note : Accelerated curing tank with cooling arrangement is also available of request

• ➤Curing Tank for 6/12 moulds of 150 mm / 70.6 mm size
• ➤Curing Tank for 12/24 moulds of 150 mm / 70.6 mm size
• ➤Curing Tank for 24/48 moulds of 150 mm / 70.6 mm size
• ➤Curing Tank for 36/72 moulds of 150 mm / 70.6 mm size

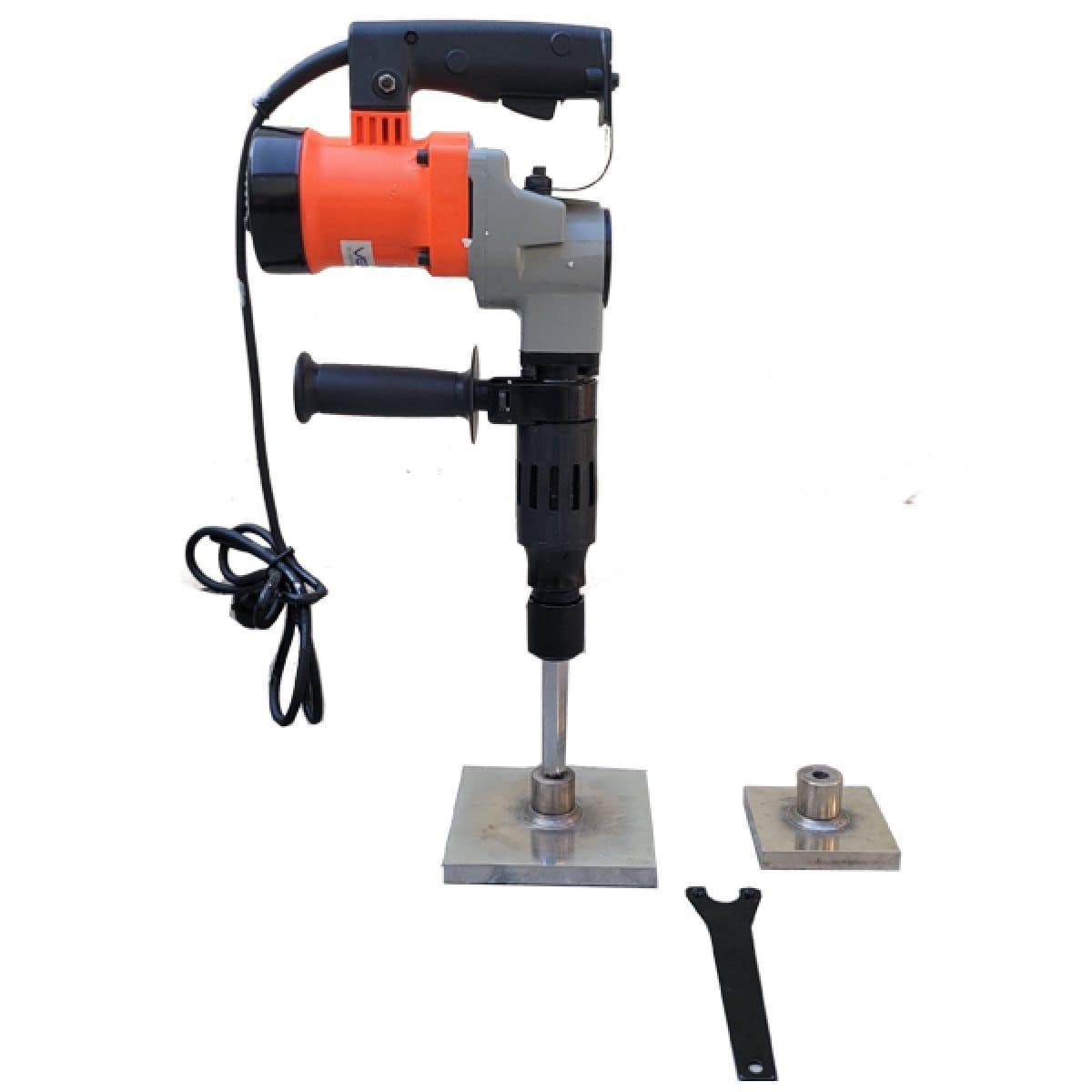

DLC Vibrating Hammer

Model No : BA-0014

Standards : IS 516, BIS 1881

Specification : We are providers of Vibratory Hammers, which is a specialized equipment used consistently at construction sites. The Vibratory Hammer is electrically operated. Our Vibratory Hammer has several uses. Some of them are listed below. Specifications Used for changing the soil formation with the use of its vibration Used for driving hammers into heavy or hard piles Used for the compaction of concrete cubes of 150mm & 100mm.

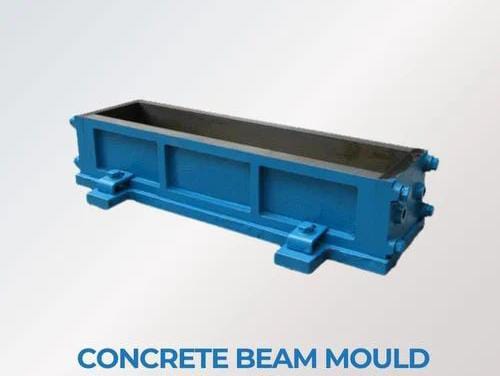

Beam Mould

Model No : BA-0015

Standards : IS 516, BIS 1881

Specification : Made of Cast Iron / Mild Steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to ± 0.2mm. And finished in size to 0.2mm.

Note : Accelerated curing tank with cooling arrangement is also available of request

• ➤Beam Mould 100mm x 100mm x 500mm
• ➤Beam Mould 150mm x 150mm x 700mm

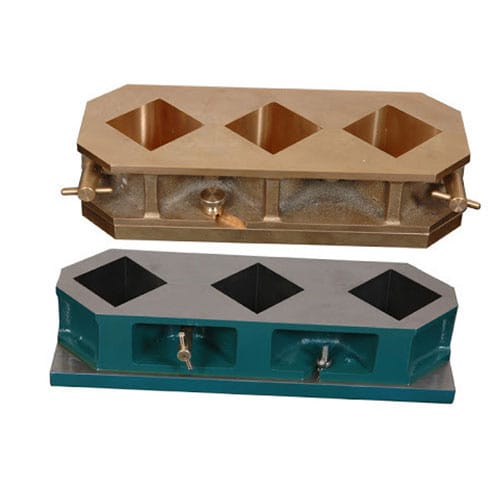

Cube Mould Three Gauge

Model No : BA-0016

Standards : IS 516, BIS 1881

Specification : This Cube Mould forms three cubes at one time in a diagonal arrangement. Mold and detachable base are held together by self-aligning thumbscrews, which ensure an even, tight fit.

• ➤50mm x 50mm x 50mm
• ➤ 70.6mm x 70.6mm x 70.6mm

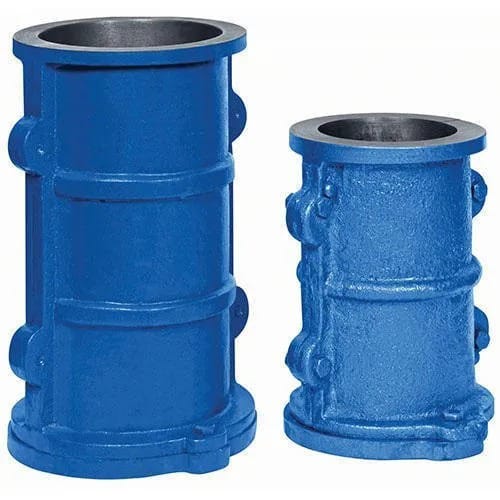

Cylindrical Mould

Model No : BA-0017

Standards : IS 516, BIS 1881

Product Description: We are specialized in the Manufacturing and Supplying of Cylindrical Mould. The Cylindrical Mould is used for testing concrete cylinders for compressive strength tests. The Cylindrical Mould can be availed at market leading prices from us.

Product Description:

• ➤The mould is made as split type with two equal segments that can be combined accurately
• ➤Base plate and top plate are offered together with cylinder. Fasteners are also provided
• ➤ Base plate and top plate are machined flat to +/- 0.03 mm
• ➤ Mean diameter (internal) of the moulds is within the accuracy range of +/- 0.2 mm
• ➤Height of the metal cylindrical mould is within accuracy range of +/- 1 mm
• ➤Mould cylinder, cast iron, 150mm dia. x 150mm height.
• ➤Mould cylinder, cast iron, 150mm dia. x 300mm height.
• ➤Mould cylinder, cast iron, 150mm dia. x 150mm height.
• ➤Mould cylinder, cast iron, 150mm dia. x 320mm height.
• ➤Mould cylinder, cast iron, 150mm dia. x 200mm height.
• ➤Mould cylinder, cast iron, 150mm dia. x 600mm height.

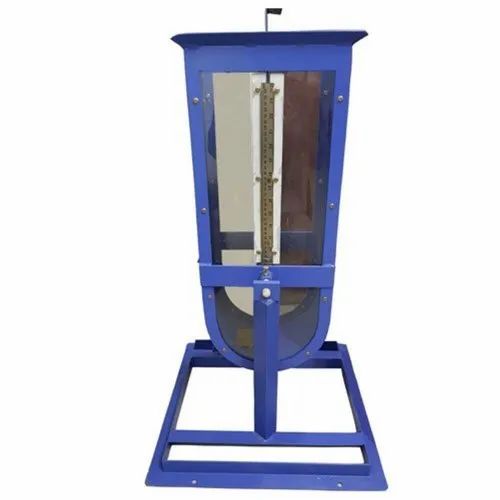

U shape Box Apparatus

Model No : BA-0018

Standards : IS 516, BIS 1881

Specification : The U Shape box apparatus is used to determine the filling and passing ability of self-compacting concrete (SCC). The U box is made of stainless steel consisting of three 12 mm dia. Rebars. The U box is mounted on a frame with a fixing mechanism.

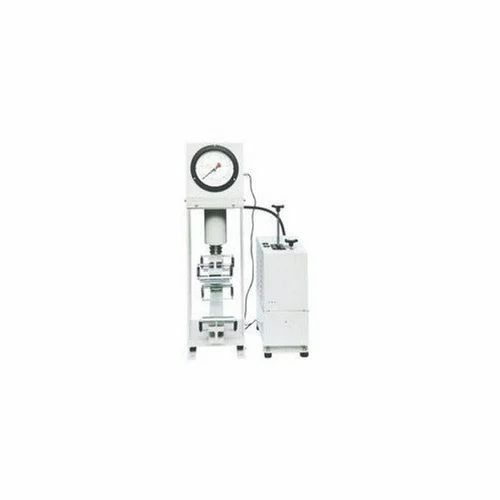

Flexural Strength Testing Machine - Power Pack Model

Model No : BA-0019

Standards : IS 516, BIS 1881

Product Description: All the concrete testing lab equipment’s made by Setest india are crafted with the solo purpose of making he process of cement manufacturing an easy and simple one. Taking in view the flexure testing machine, it is being specially designed to test the flexure strength of the most important factor in the process that is the concrete beams.

Specification : The automatic flexure testing machine designed by Setest India is curated with a special design that enables maximum rigidity and stability through out the working range and functionality and operation of the machine. The machine is designed with a special load which further enables downward movement of the piston when applied and when in motion. The machine is designed with the best of international and latest tools and innovations happening in the technology arena, to provide the best of world class experience in functions and operations.

High Performance Oriented Machine: The flexure machine has a dedicated spacer which is for testing different size of beams. The load is indicated on a calibrated bourdon tube type load gauge of range: 0 - 100 kN x 0.5 kN (0- 10,000 kgf x 50 kgf). Also, the load gauge is calibrated against National Council for Cement and Building Materials Certified Proving Ring.

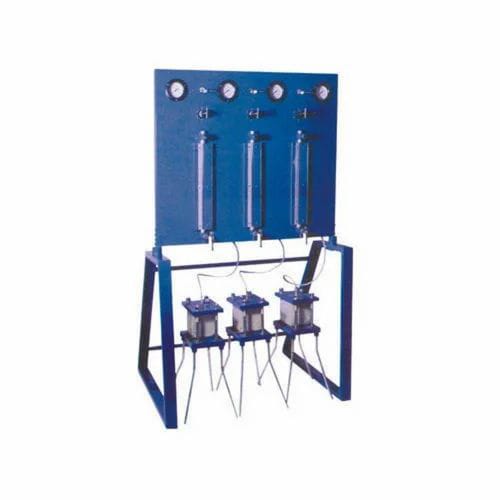

Concrete Permeability Apparatus - Three Cell

Model No : BA-0020

Standards : IS 516, BIS 1881

Specification : The concrete permeability apparatus comprises of a mild steel cell of Square/Round cross-section mounted on a stand and a pressure chamber is connected to the cell through copper tubing and T-connector mounted on the stand with sleeve packed valve and rubber hose pipe with end connections. The cell assembly consists of one base plate and one top plate connected to nozzles.

Note: Note: The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-15kg/cm sq. Gauge is for indicating the pressure in the cell. A foot pump and a pressure tube is supplied to develop pressure in the chamber. The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.

• ➤Pressure can also be applied; by a pressure air line or by a compressor (2 HP capacity), can be supplied at an extra cost.
• ➤Model available for 6, 9, 12, 18 cells permeability also.

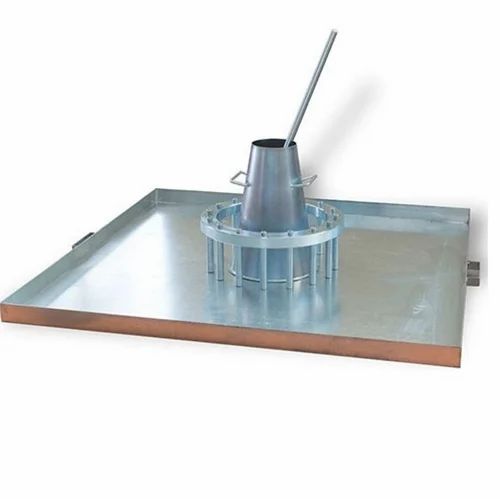

J Ring Apparatus Of Concrete Testing

Model No : BA-0021

Standards : IS 516, BIS 1881

Specification : The J-Ring test is used for determining the passing ability, the flow spread and the flow time of self compacting concrete as the concrete flows through the J-Ring apparatus. The J-Ring narrow gap with ø18 mm x 16 smooth bars is manufactured from stainless steel. The Slump Cone is made from sheet steel protected against corrosion, with diameters; top 100 mm, base 200 mm and with a height of 300 mm. The Base plate is 900x900x3 mm square, made of stainless steel with engraved circles of 200 mm and 500 mm diameter conforming to EN 12350- 8. The Steel weighted collar is used to stabilize the slump cone on J-Ring or slump flow tests. Minimum apparatus for the J-Ring test are J-Ring with narrow gap and slump cone. Bhalaji Associates-0080 J-Ring, narrow gap Bhalaji Associates-0080 Slump cone for J-Ring Bhalaji Associates-0080-A Base plate for J-Ring and slump-flow tests Bhalaji Associates-0080-B Steel weighted collar, 9 kg Bhalaji Associates-0080-C EN 12350-8 for slump cone on J-Ring or slump flow test

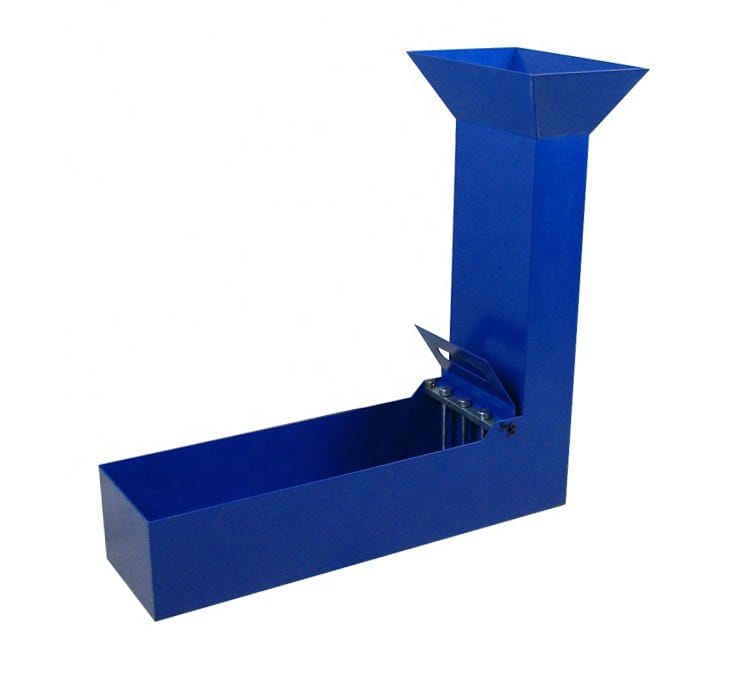

L Box Test Apparatus

Model No : BA-0022

Standards : IS 516, BIS 1881

Specification : The L Shape box is used for determining the passing ability rate of freshly mixed self compacting concrete. The distance between 12 mm diameter bars can be set between 41±1 mm or 59±1 mm. L Shape box is designed for ease of cleaning the vertical and horizontal hoppers. The l shape box apparatus is supplied complete with:

• ➤Filling Hopper.
• ➤Base

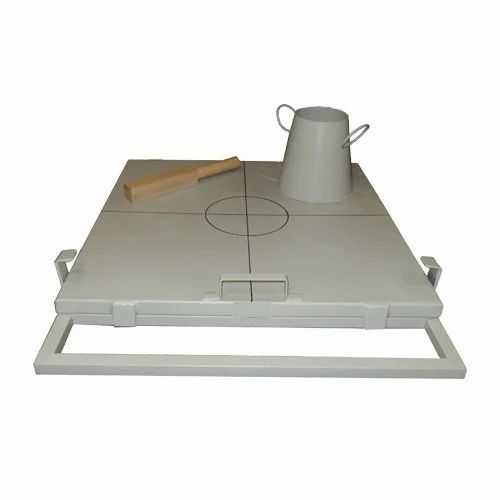

Flow Table Test Apparatus

Model No : BA-0023

Standards : IS 516, BIS 1881

Specification : The test set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table. The apparatus consists of a double steel table, an upper table measuring 700 x 700 mm and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion. The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness. Dimensions: 700 x 850 x 300 mm, Weight (approx.) 40 kg Bhalaji Associates-0081 Concrete flow table test set Bhalaji Associates-0081-A Flow cone for Bhalaji Associates-0081-B Wooden tamper 40 x 40 x 335 mm

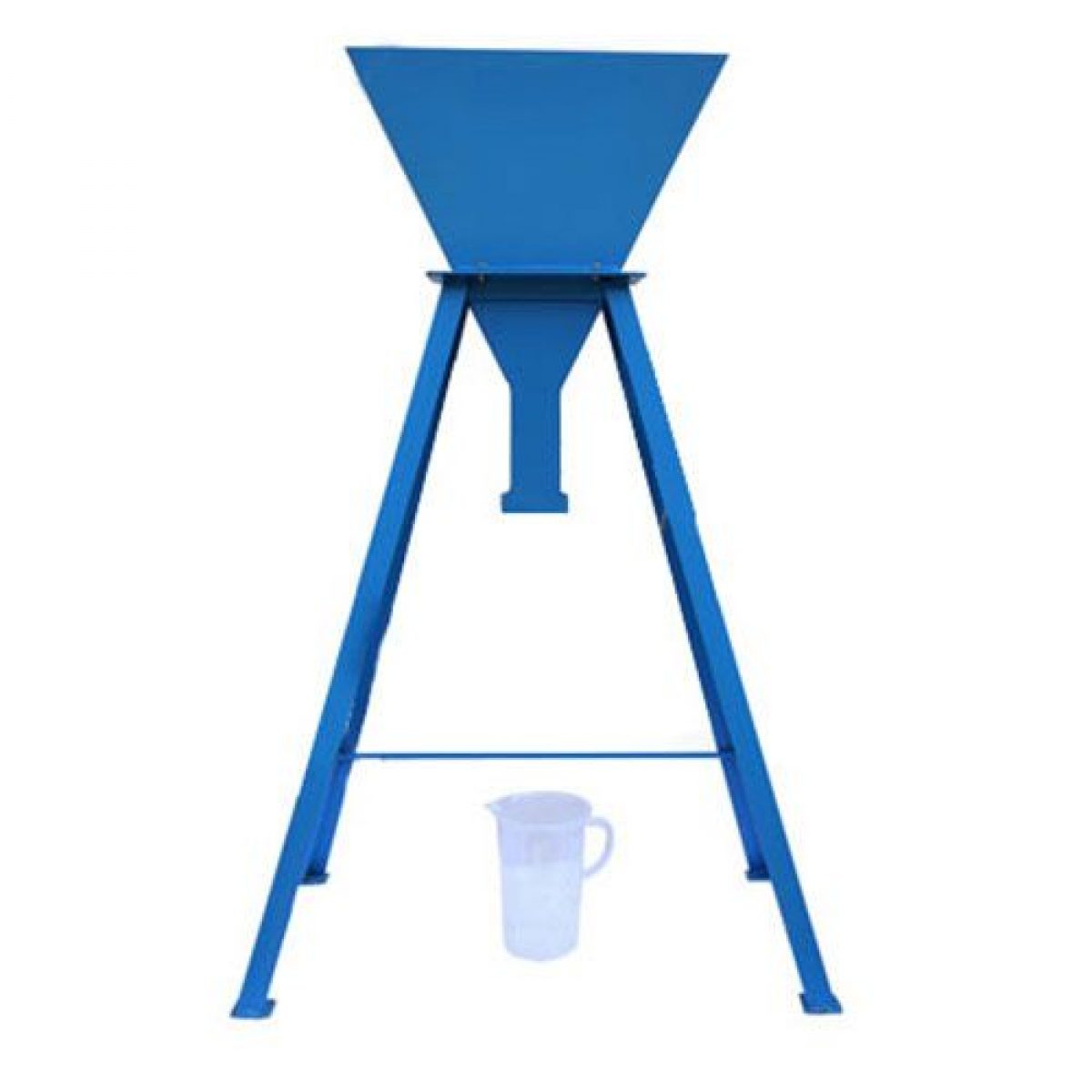

V Funnel Test Apparatus

Model No : BA-0024

Standards : IS 516, BIS 1881

Specification : The V Funnel apparatus is used to evaluate the flow time of freshly mixed self compacting concrete. The test is not suitable when the maximum size of the aggregate exceeds 22.4 mm. The test set consists of a stainless steel funnel placed vertically on a supporting stand. The discharge orifice is equipped with a lid, which can be momentarily opened. The l shape box apparatus is supplied complete with:

• ➤Filling Hopper.
• ➤Base

V Funnel Test Apparatus

Model No : BA-0025

Standards : IS 516, BIS 1881

Specification : The instrument is used for workability as well as consistency of fresh concrete. A slump Cone and a graduated rod supplied with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out workability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc. The equipment consists of : A vibrating table size 380 mm long and 260 mm wide, resting upon elastic support at a height of about 305 mm above the floor, complete with Start/Stop switch, cord and plug. A holder is fixed to the base in to which a swivel arm is telescoped with funnel and guide swivel arm is also detachable from the vibrating table. The divisions of scale on the rod record the slump of the concrete in millimeters. Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table. A slump cone open at both ends with lifting handles and a tamping rod of size 16 mm dia. and 600 mm long rounded at both ends.

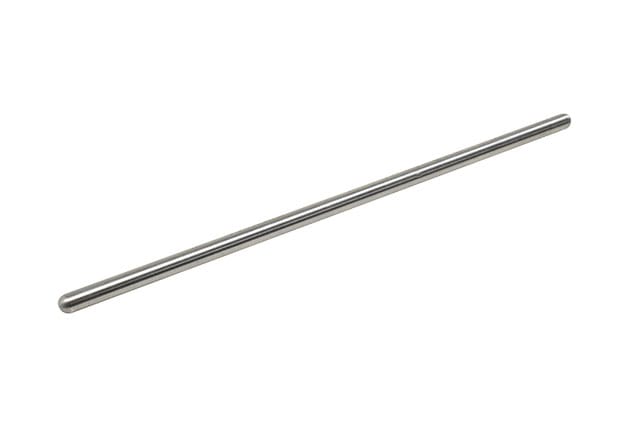

Cube Tamping Rod

Model No : BA-0026

Standards : IS 516, BIS 1881

Specification : This is used for compacting concrete into cube moulds. This rod is made of steel it is 16 mm dia., 600 mm in length and rounded at both ends.

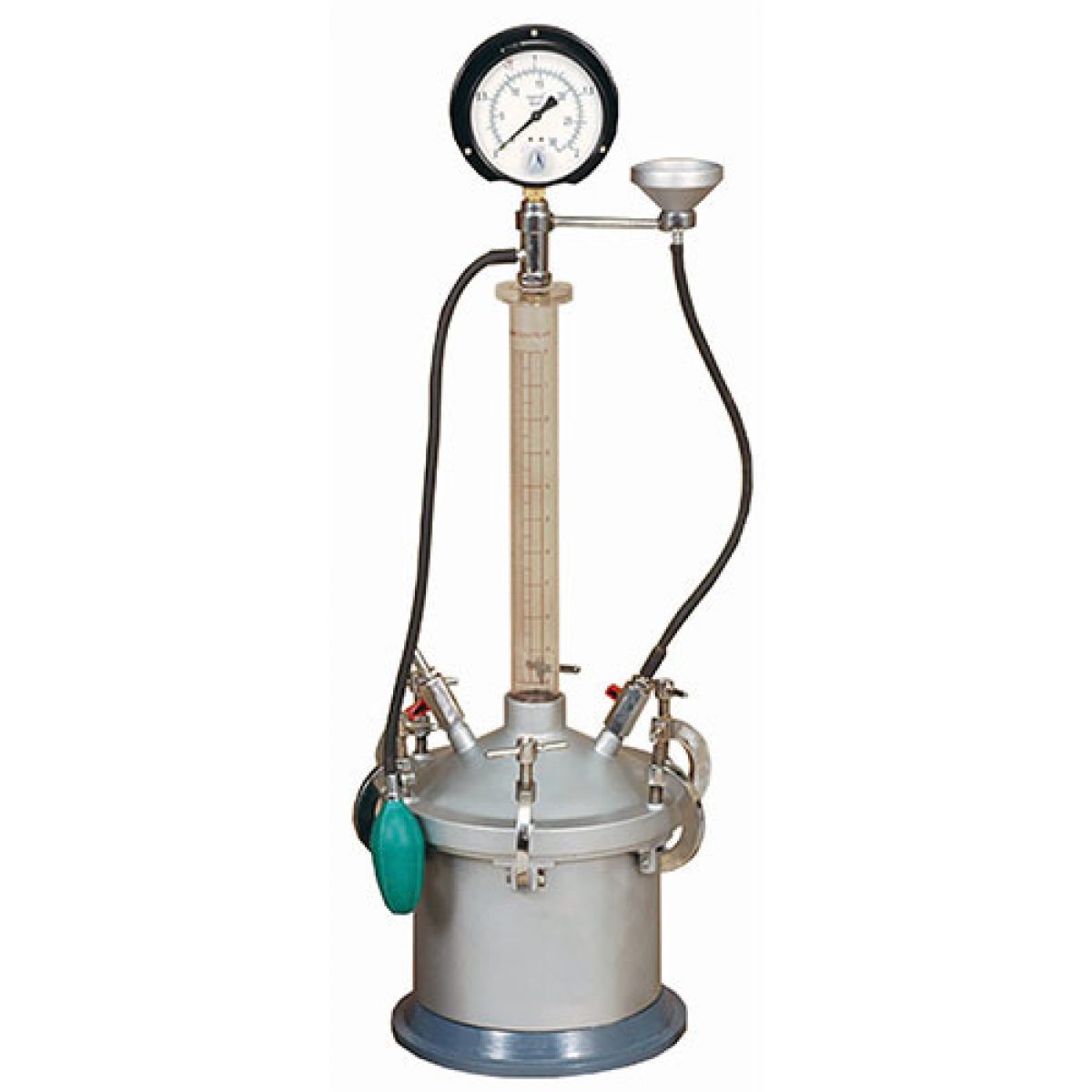

Air Entrainment Meter

Model No : BA-0027

Standards : IS 516, BIS 1881

Specification : The apparatus consists of a pressure tight flanged cylindrical measuring bowl. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a petcock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, trowel, tamping rod, straight edge. Rubber mallet and measure.

Capacity Are also Available:

• ➤Bowl Capacity: 0.005 cubic meter
• ➤Bowl Capacity: 0.007 cubic meter
• ➤Bowl Capacity: 0.007 cubic meter
• ➤Bowl Capacity: 0.01 cubic meter
• ➤Bowl Capacity: 0.01 cubic meter

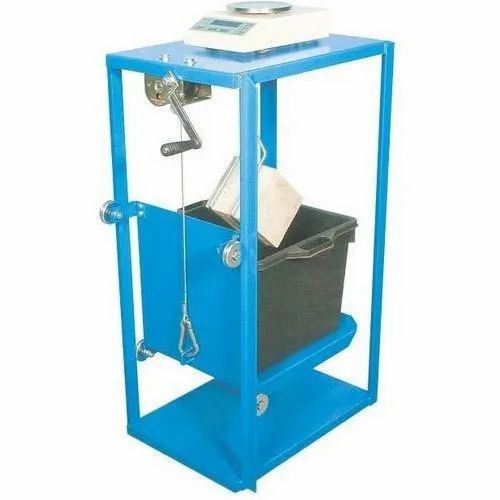

Density Of Fresh Concrete And Hardened Concrete

Model No : BA-0028

Standards : IS 516, BIS 1881

Specification : The density of both fresh and hardened concrete is of interest to the engineer for numerous reasons including its effect on durability, Strength and resistance to permeability. Hardened concrete density is determined either by simple dimensional checks, followed by weighing and calculation or by weight in air / water buoyancy methods.

Density of Hardened Concrete : The density of hardened concrete specimens such as cubes and cylinders can be quickly and accurately determined using a Buoyancy Balance.

Buoyancy Balance: : The buoyancy balance system developed by us consists of a rigid support frame. Incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance fixed on a cradle. The balance supplied may also be used as a standard weighting device, thus providing a versatile and comprehensive weighing system in the laboratory. The sample is weighed in air and in water to calculate the density of fresh concrete.

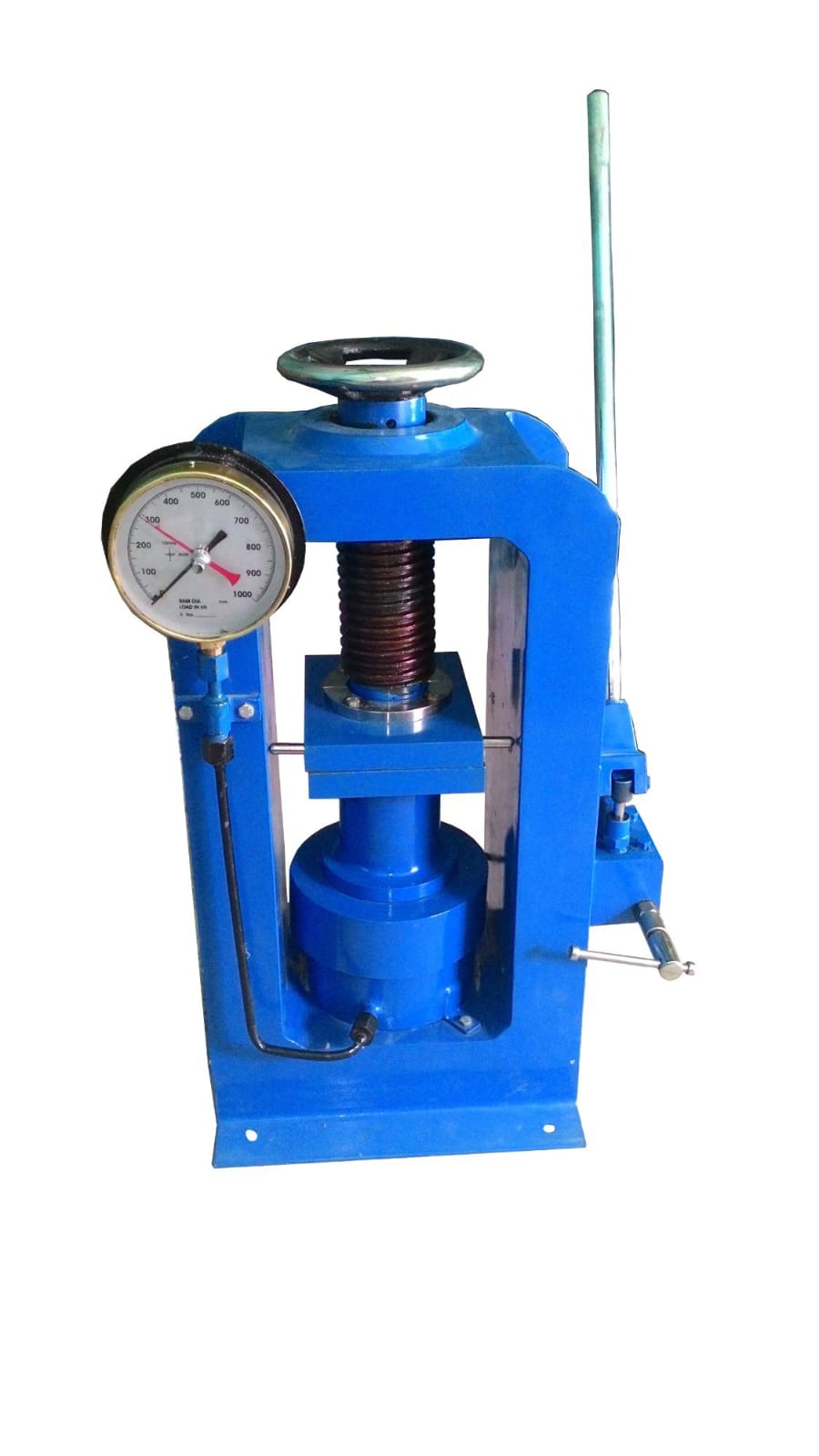

Compression Testing Machine Channel Type Load Frame Hand Operated

Model No : BA-0029

Standards : IS 516, BIS 1881

Specification :    In these load frames “C” channels are used, they are welded at the top as well as bottom and with stand high loads. A hydraulic jack is fitted at centre of the base of the load frame, over which can be fitted lower platen and spacer block with the help of centering pin. A lead screw passes through the top of the frame. To the lower end of this lead screw is fixed the upper platen with spherical seat for self alignment. The platens are accurately machined, hardened and polished. The lower platen grooves to correctly place the specimen.

Note:    The platens are normally rectangular on shape, but on special request square platens or circular platens can be supplied at an extra cost.

Range:     50 kN to 3000 kN

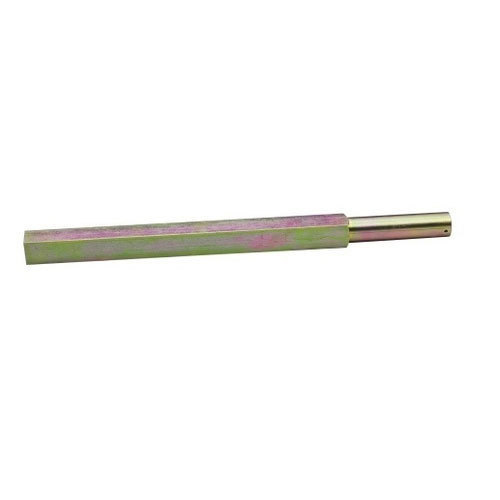

Tamping Bar

Model No : BA-0030

Standards : IS 516, BIS 1881

Specification :    This is used for compacting concrete into cube moulds. This rod is made of steel bar it is 25 mm square x 380 mm long with handle.

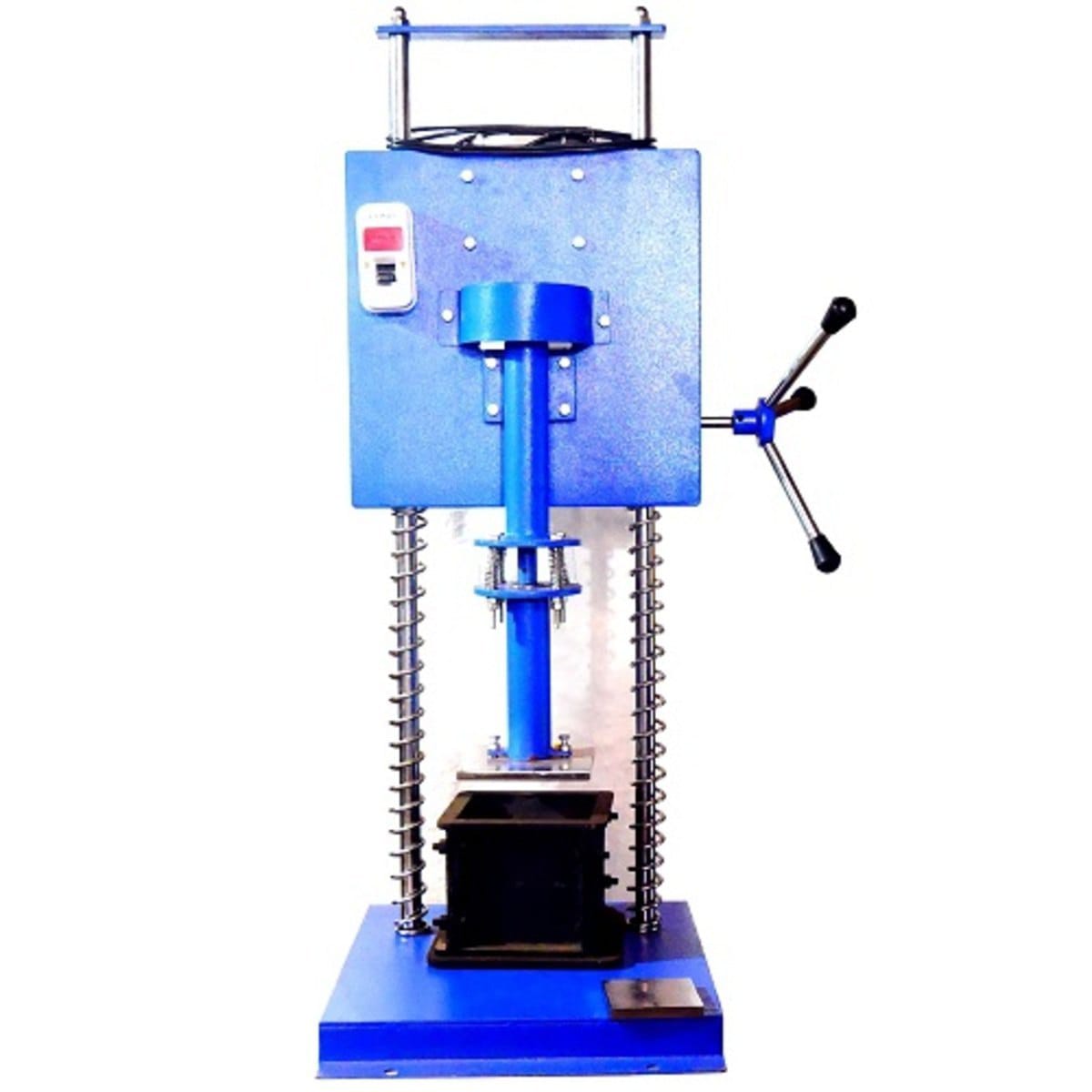

DLC Cube Vibrating Hammer

Model No : BA-0031

Standards : IS 516, BIS 1881

Specification :Used for the compaction of concrete samples in a mould. Generally the vibratory hammer is found to be a much faster & quicker method as compared to impact hammering. The vibratory hammers are supplied with 1 tamping feet & 1 shank. Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.
